Notes
Disassembly And Reassembly: Notes

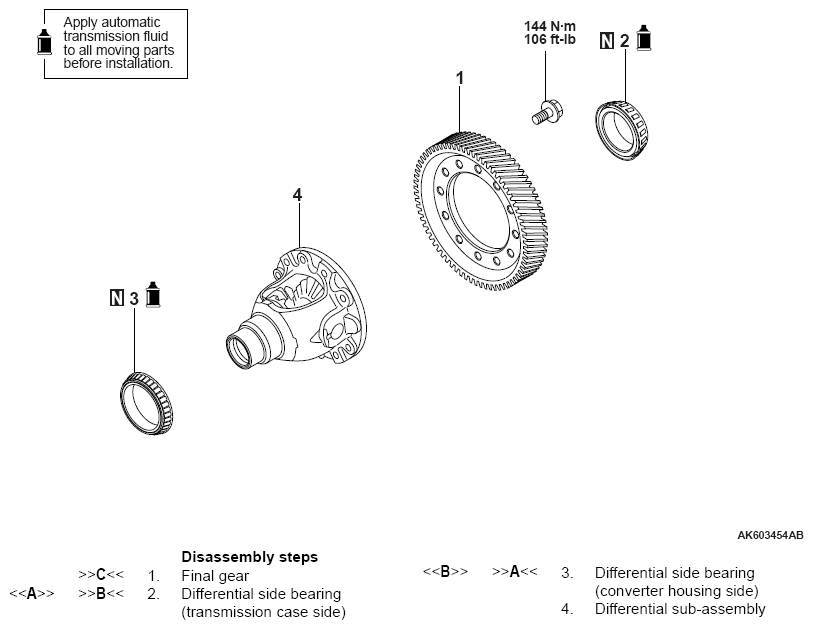

Fig 1: Disassembling/Reassembling Differential Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
