Disassembly And Reassembly: Overview

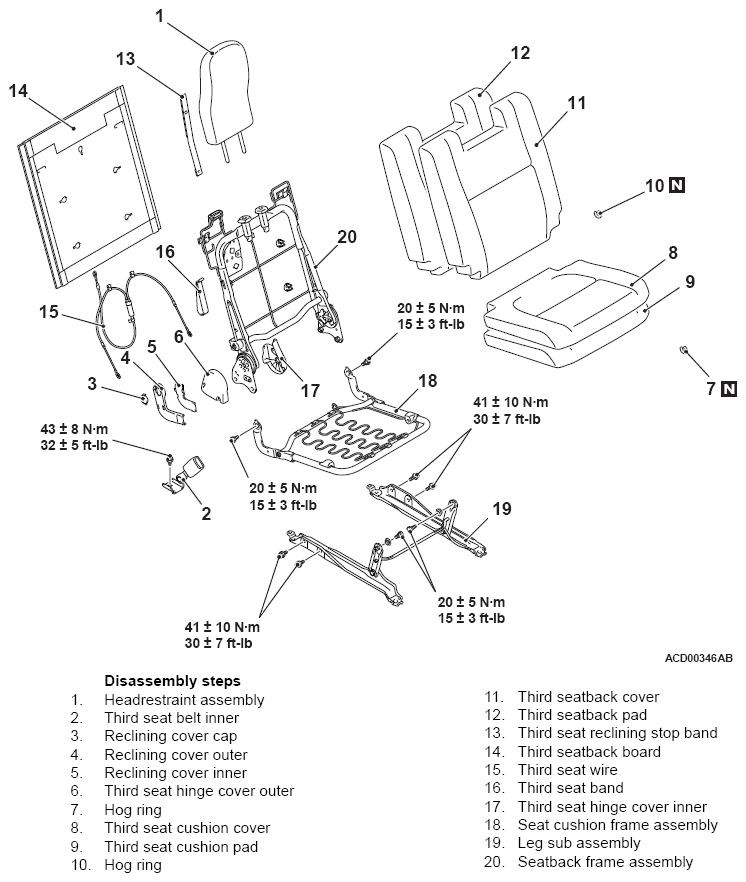

Fig 1: Disassembling/Reassembling Third Seat Assembly Components Location With Torque Specification
G13498595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
