Home >> Mitsubishi >> 2020 >> Outlander SE, FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul - 2.4L >> Piston And Connecting Rod >> Removal And Installation >> Notes

Removal And Installation: Notes

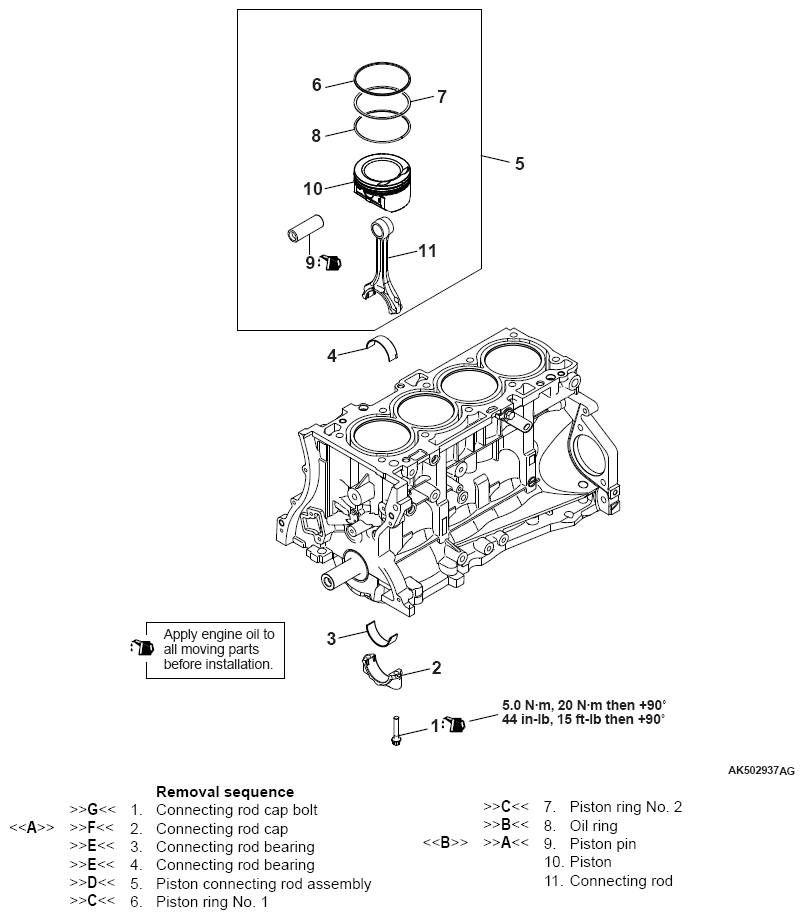

Fig 1: Removing/Installing Piston And Connecting Rod Components Location With Torque Specification
G13495479Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
