Removal And Installation: Notes

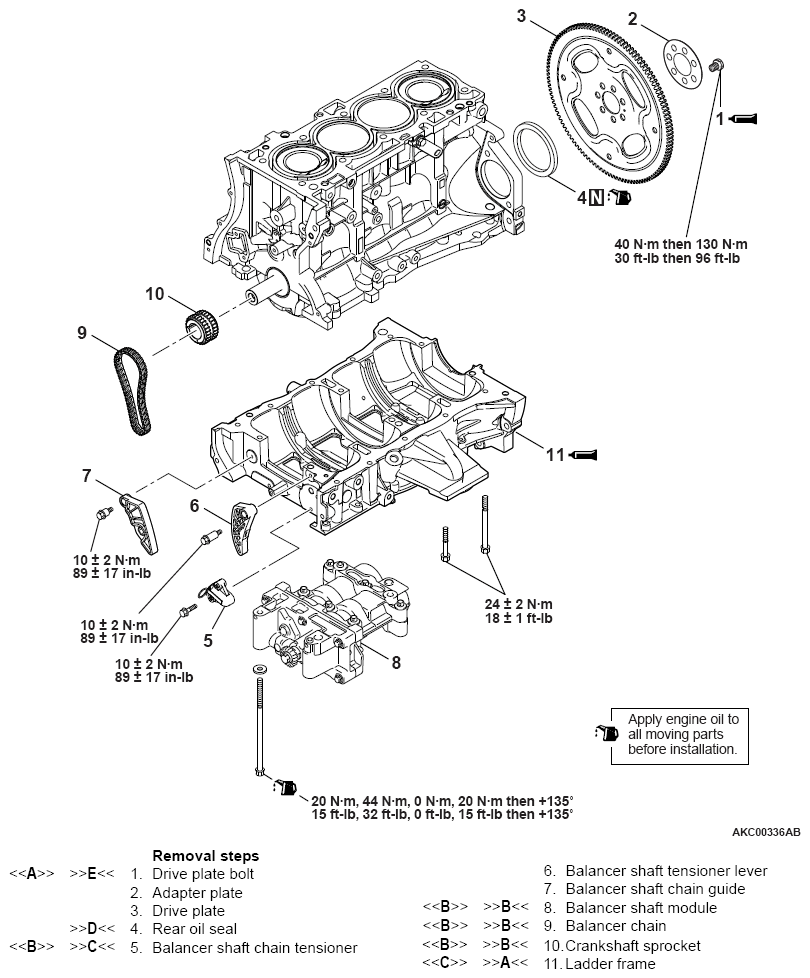

Fig 1: Removing/Installing Balancer Chain Components Location With Torque Specification
G13495456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
