Configuration Diagrams: Floor

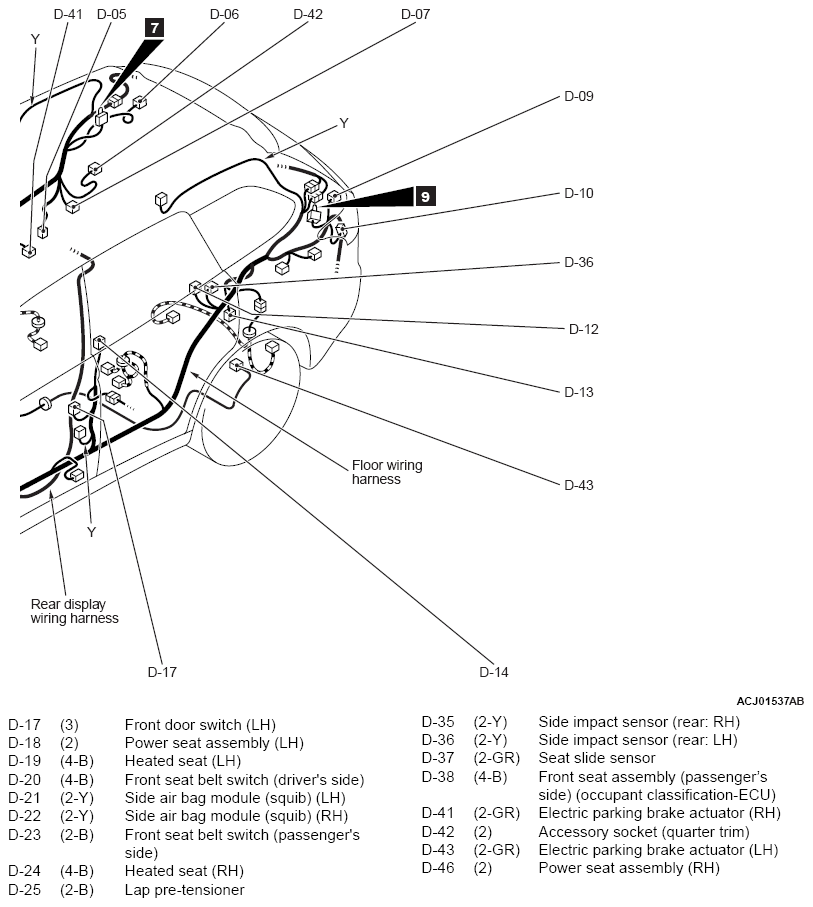

G13502260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

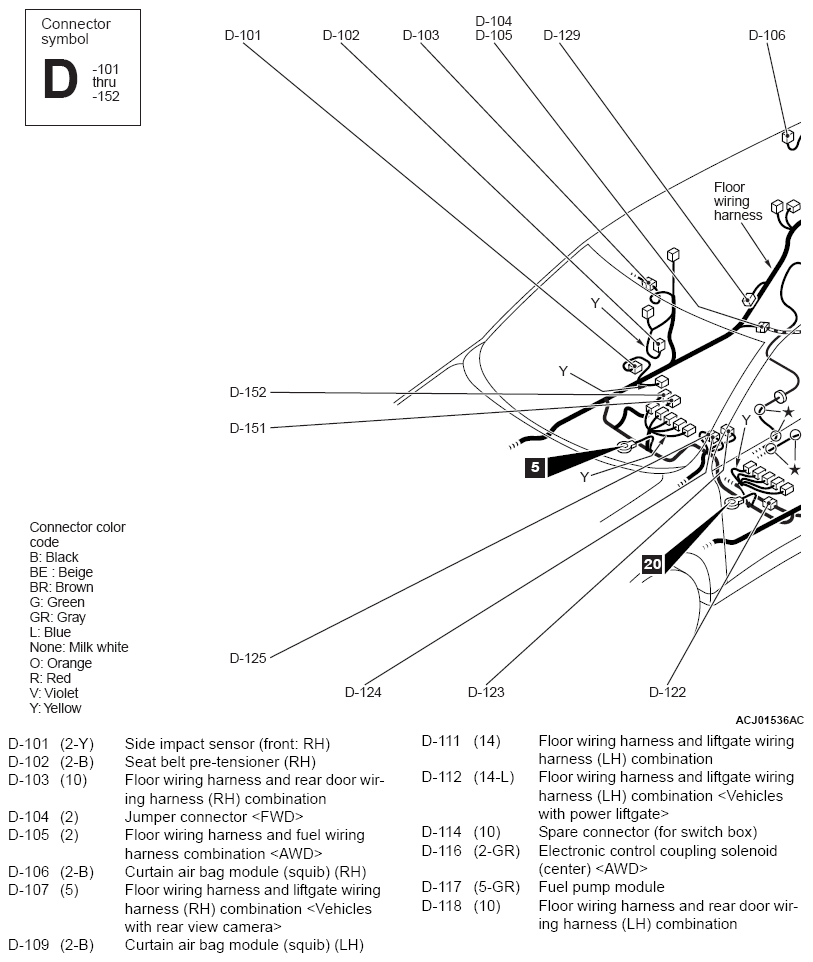

G13502261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

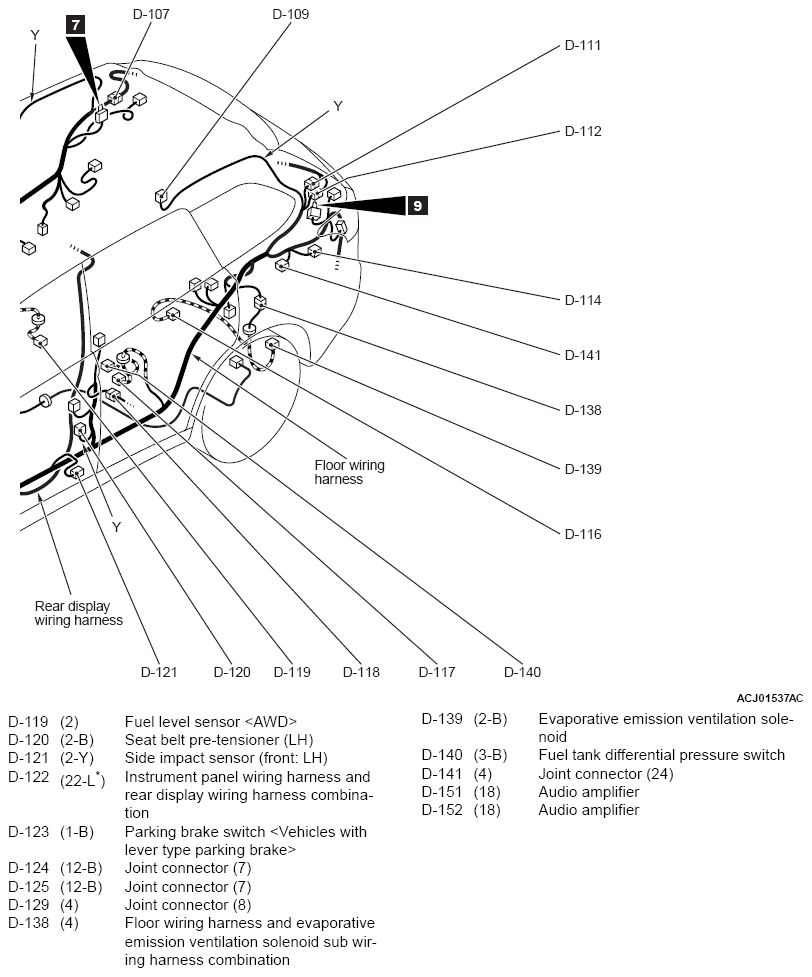

G13502262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

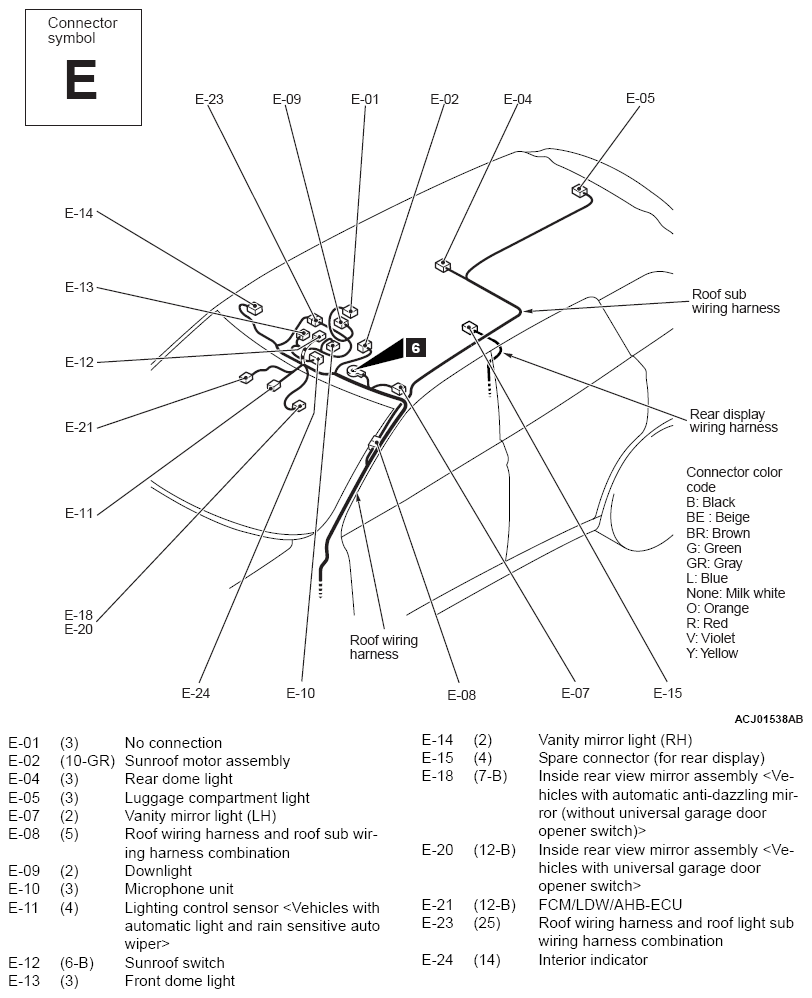

G13502263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
