Engine Compartment <2.4L Engine>

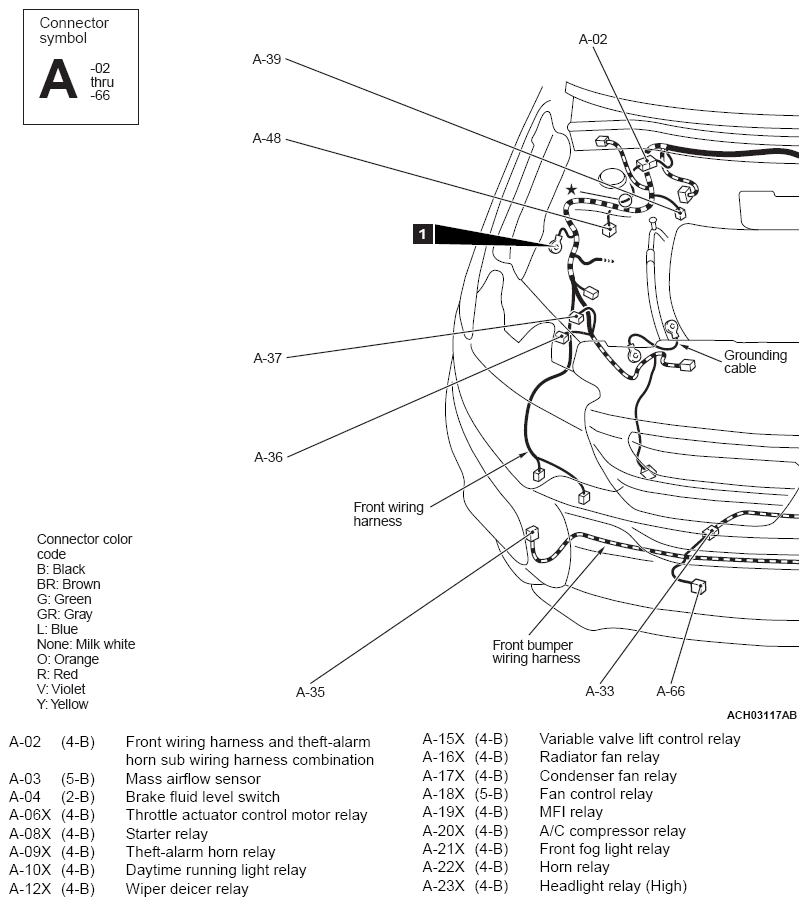

G13502235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

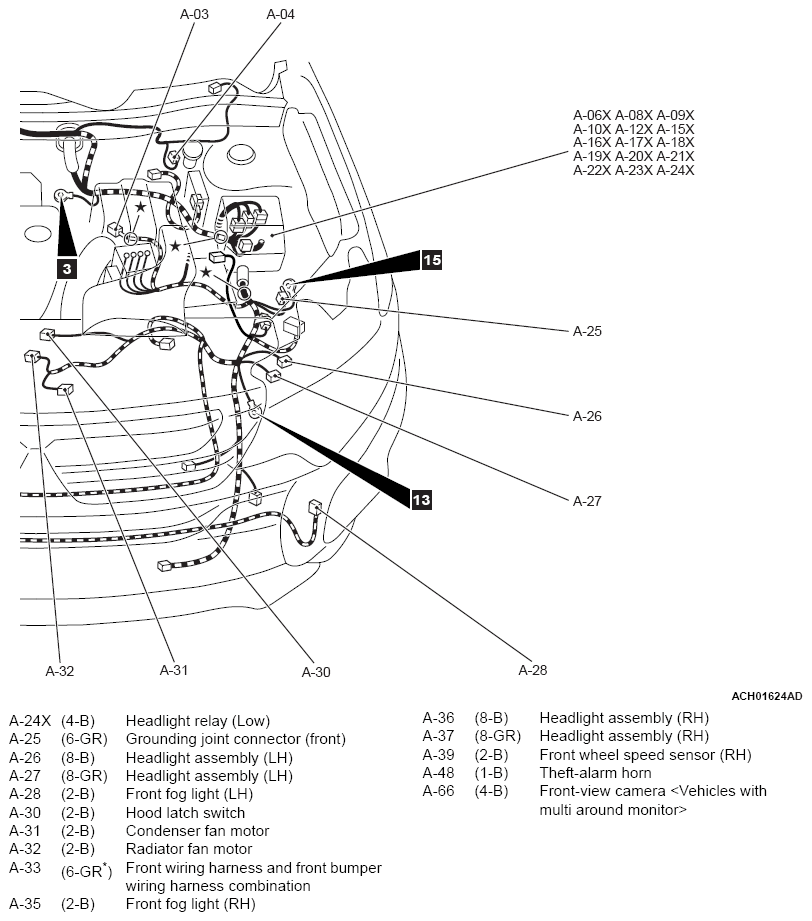

G13502236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The connector color marked by * indicates female side. The male-side connector color is black.

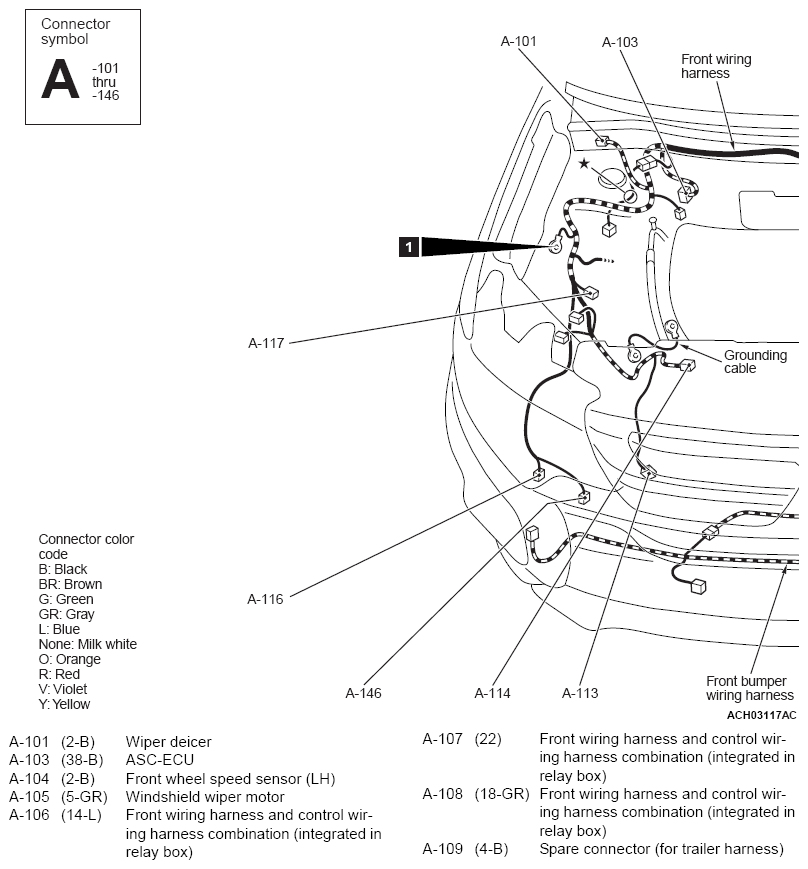

G13502237Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

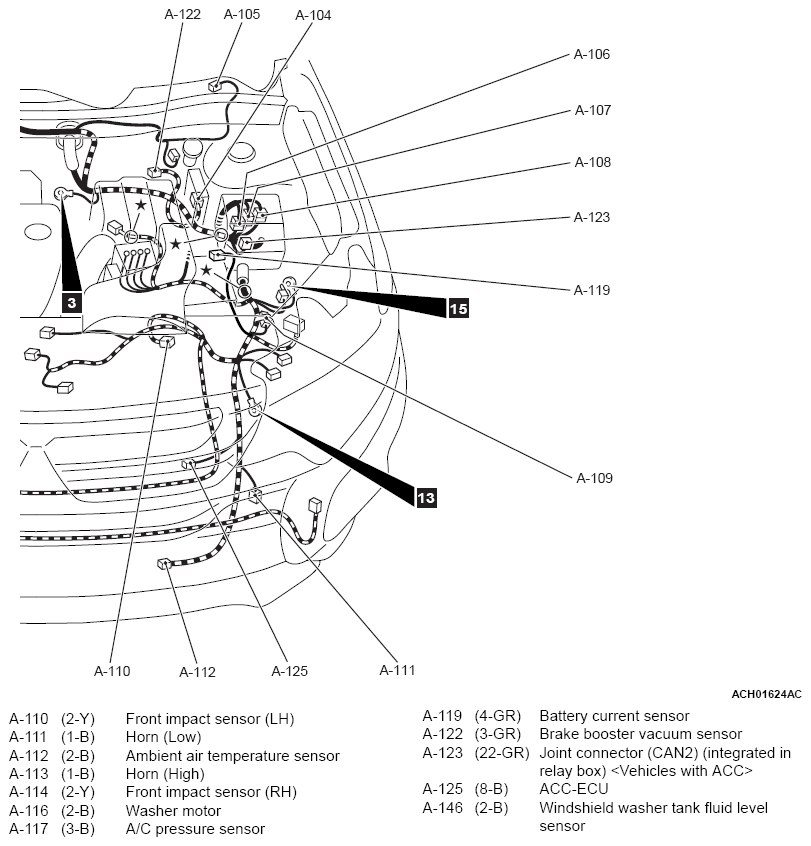

G13502238Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
