Removal And Installation: Notes

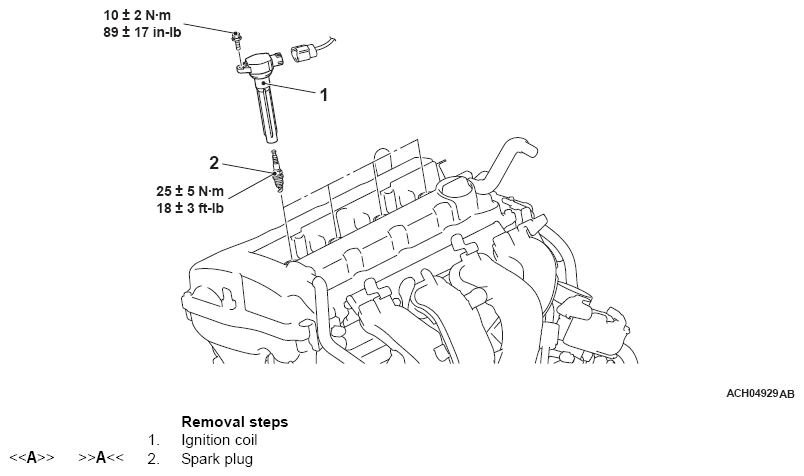

Fig 1: Removing/Installing Ignition Coil Components With Torque Specification
G13500228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
