Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

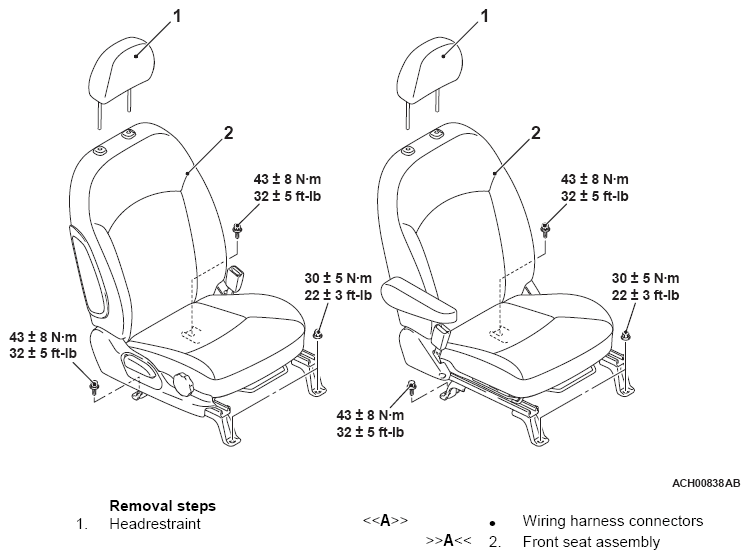

Fig 1: Removing/Installing Front Seat Assembly Components Location With Torque Specification
G13240558Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
