Home >> Mitsubishi >> 2020 >> Mirage LE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Liftgate

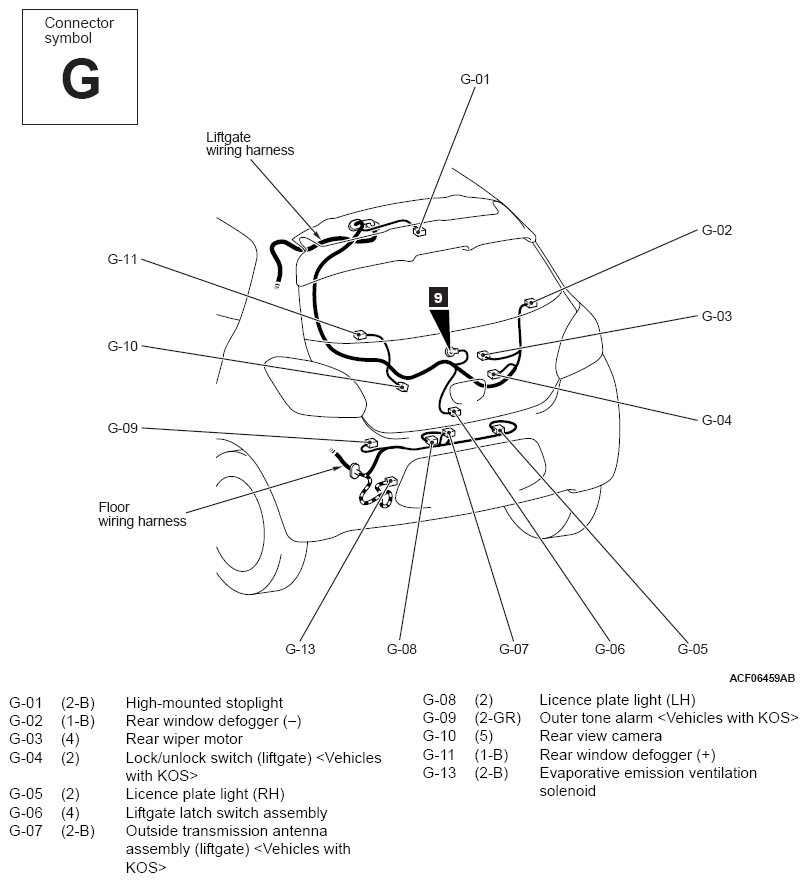

Configuration Diagrams: Liftgate

G13241374

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
