Engine Compartment

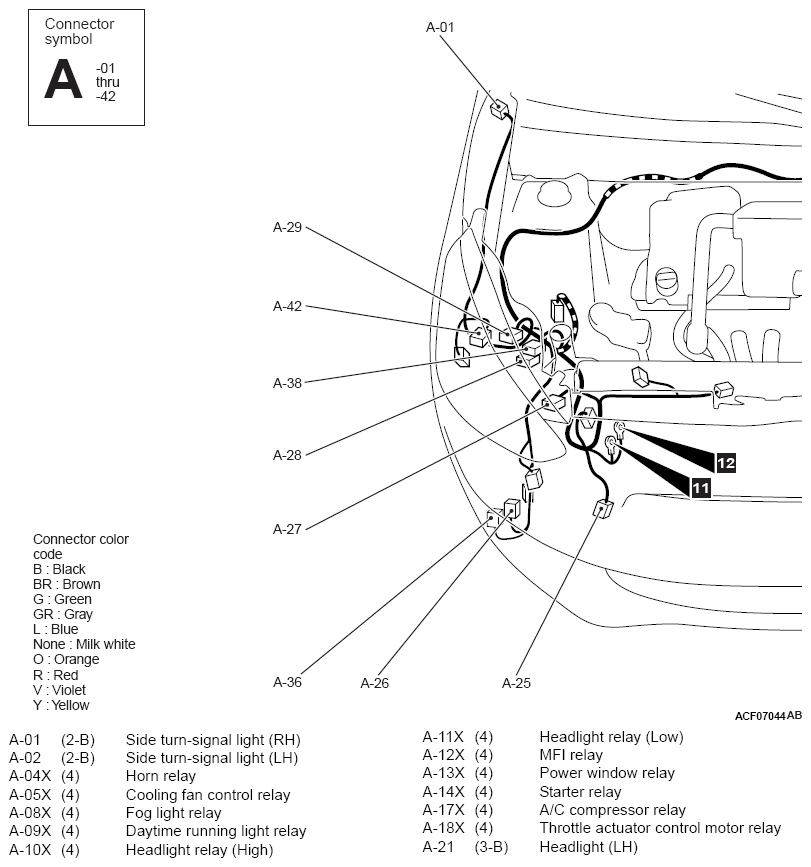

G13241353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

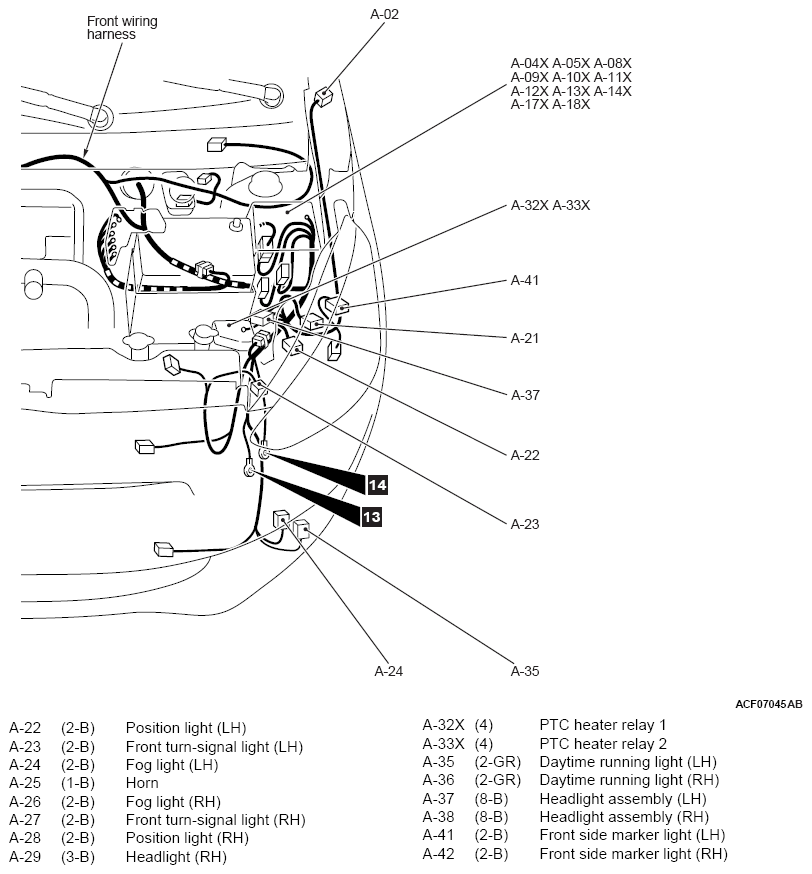

G13241354Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

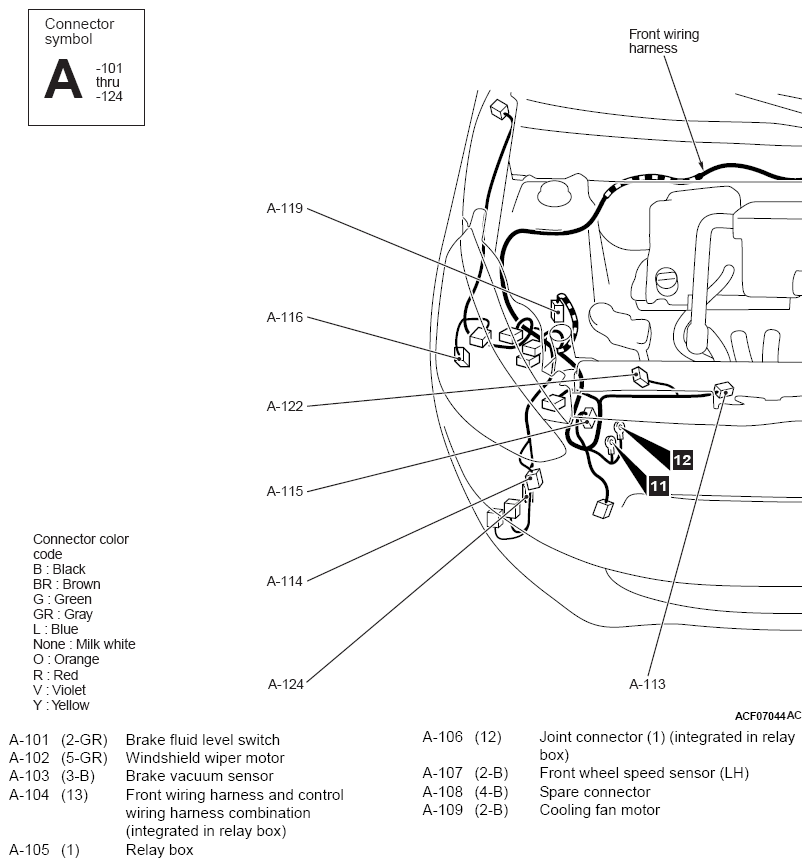

G13241355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

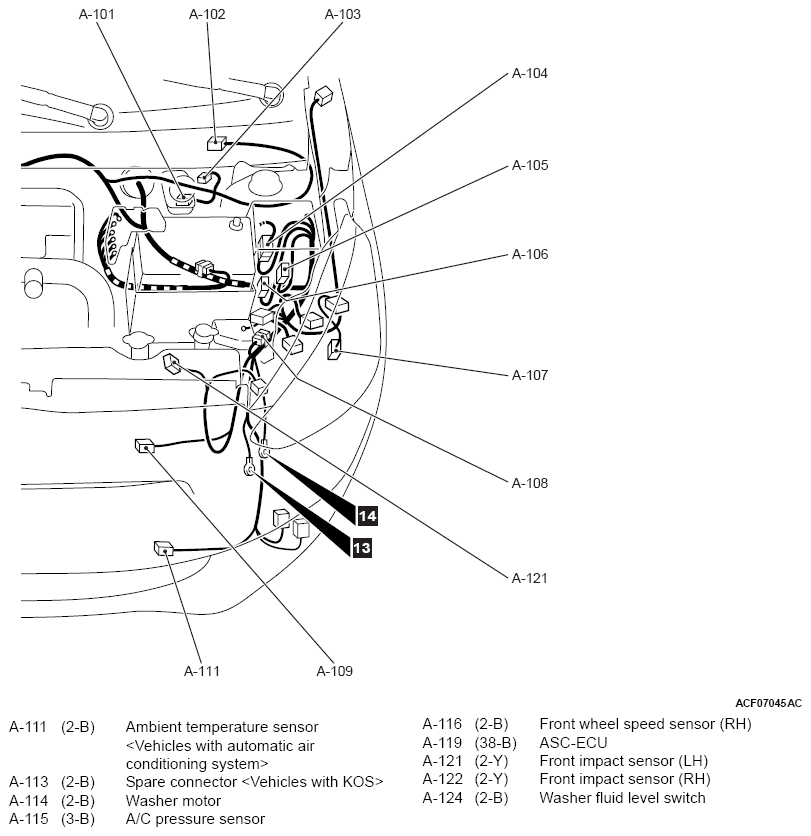

G13241356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
