Engine And Transaxle

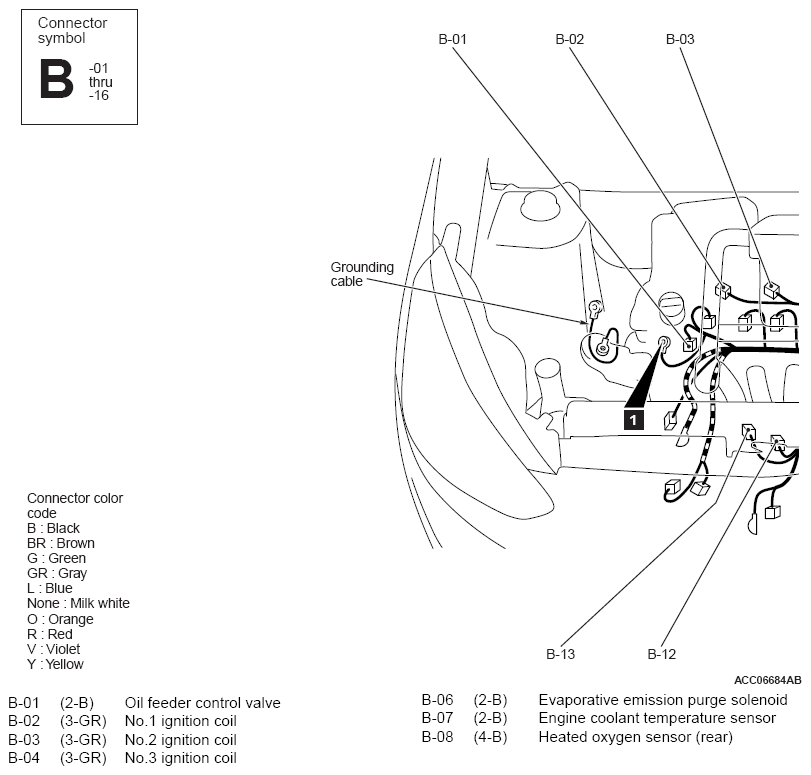

G13241357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

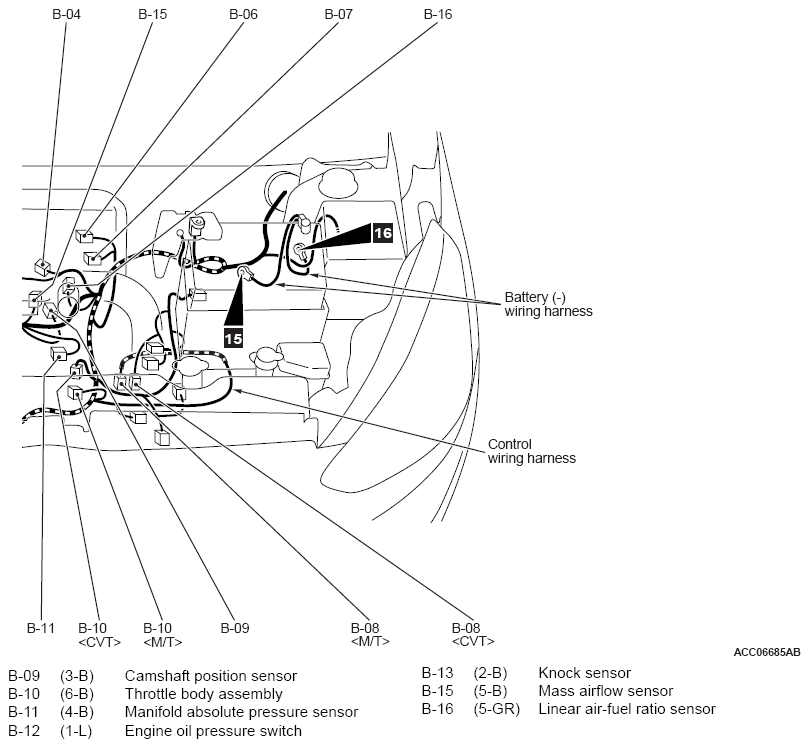

G13241358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

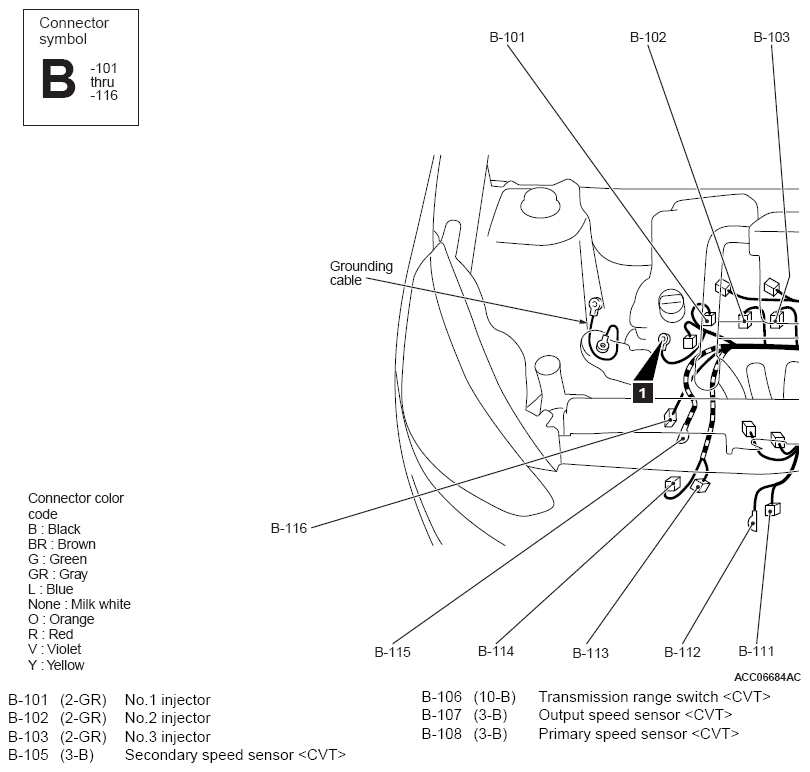

G13241359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

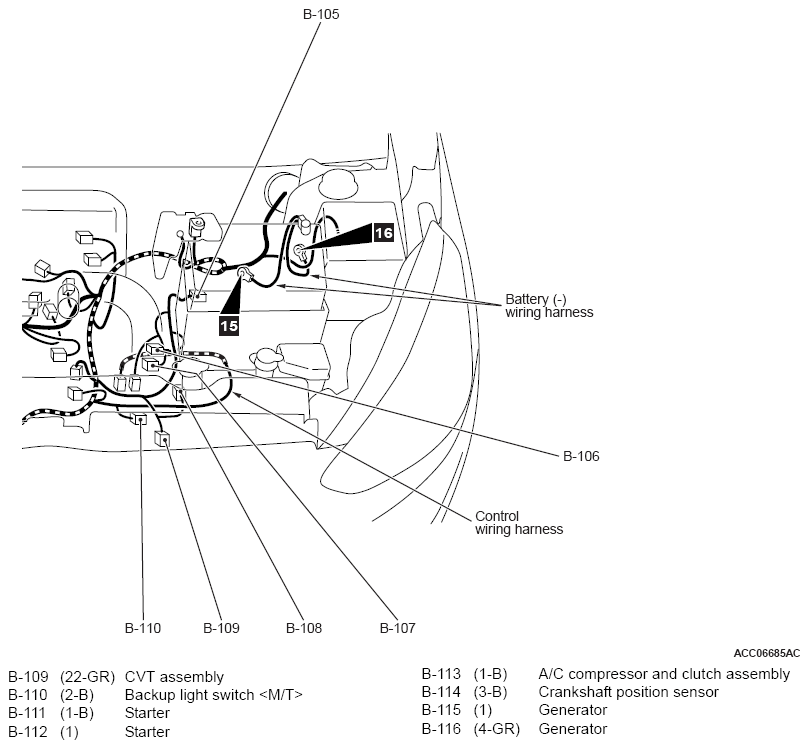

G13241360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
