Home >> Mitsubishi >> 2020 >> Mirage G4 SE >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

G11460948

NOTE: Same ground numbers are used in the circuit diagram.

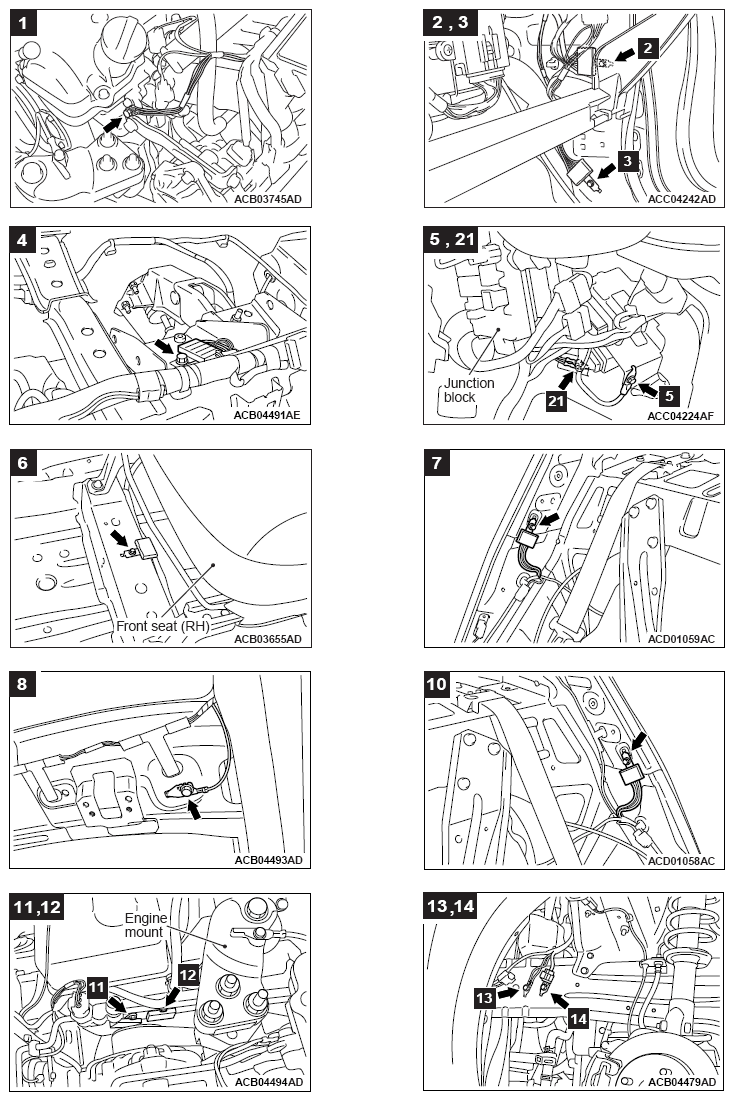

G13256371

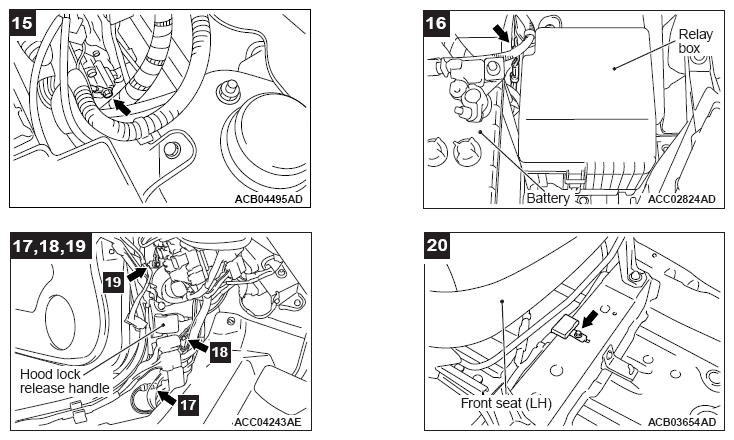

G13256372
