Control Unit

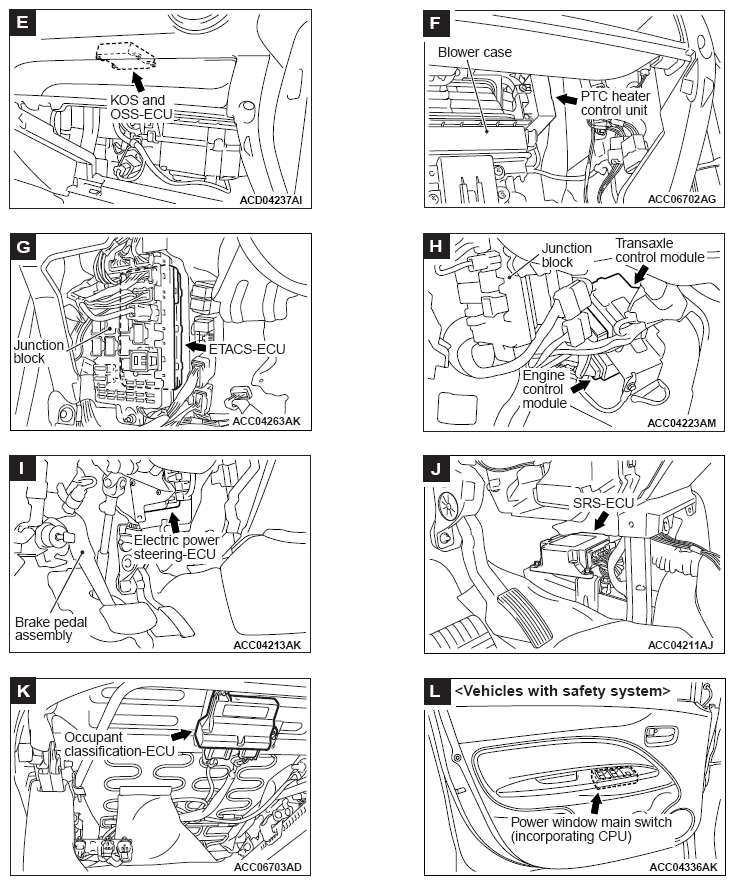

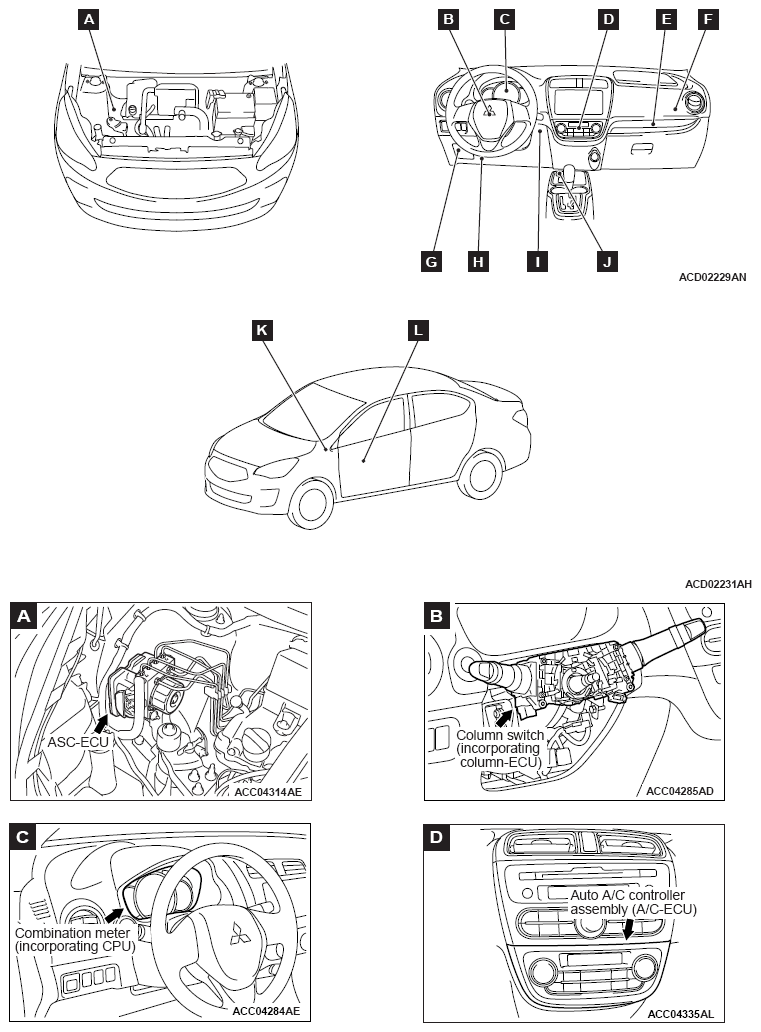

| Name | Symbol | Name | Symbol |
|---|---|---|---|
| ASC-ECU | A | ETACS-ECU | G |
| Auto A/C controller assembly (A/C-ECU) | D | KOS and OSS-ECU | E |
| Column switch (incorporating column-ECU) | B | Occupant classification-ECU | K |
| Combination meter (incorporating CPU) | C | PTC heater control unit | F |
| Transaxle control module <CVT> | H | Power window main switch (incorporating CPU) <Vehicles with safety system> | L |
| Engine control module | H | SRS-ECU | J |
| Electric power steering-ECU | I |
