Notes
Removal And Installation: Notes
Pre-removal Operation
Fuel Draining
Rear Seat Cushion Assembly Removal (Refer to
REAR SEAT ASSEMBLY
).
Post-installation Operation
Checking for Fuel Leaks.
Rear Seat Cushion Assembly Installation (Refer to
REAR SEAT ASSEMBLY
).
Refilling Fuel

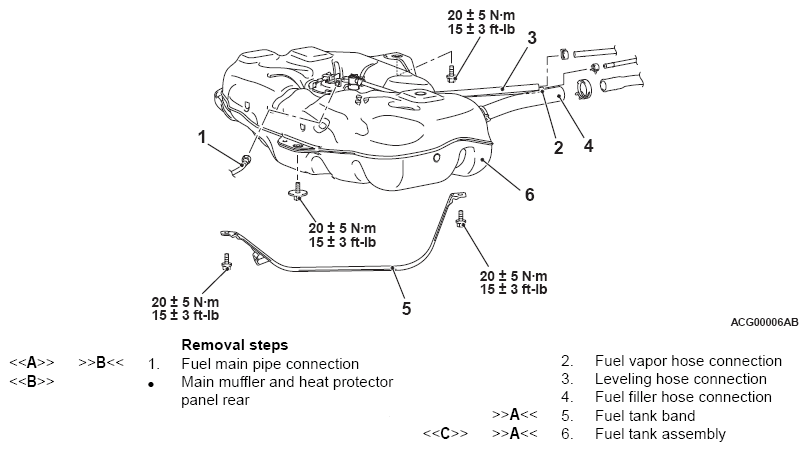

Fig 1: Removing/Installing Fuel Tank Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
