Removal And Installation: Notes

Pre-removal Operation
  • Engine Room Under Cover Front Removal (Refer to UNDER COVER ).
 Post-installation Operation
  • Engine Room Under Cover Front Installation (Refer to UNDER COVER ).

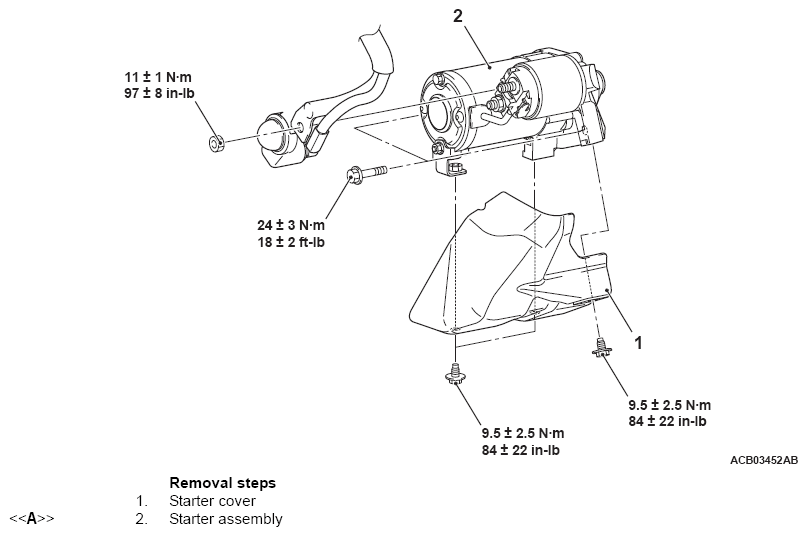

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification
G13239528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
