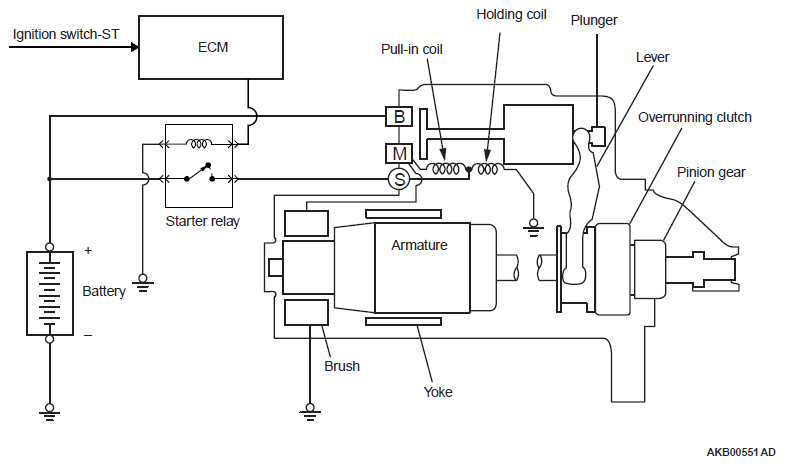

System Diagram

When the ignition switch is returned to the "ON" position after starting the engine, ECM turns OFF the starter relay, the pinion gear is disengaged from the ring gear.

An overrunning clutch is provided between the pinion and the armature shaft, to prevent damage to the starter.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
