Home >> Mitsubishi >> 2020 >> Eclipse Cross SEL, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator Assembly >> Disassembly And Reassembly >> Notes

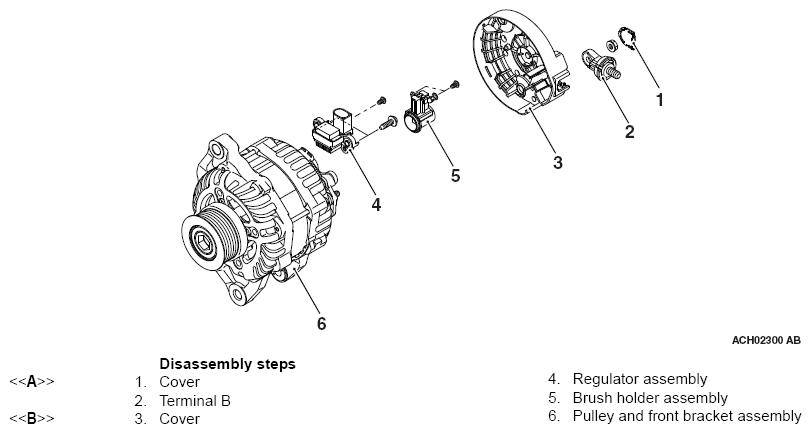

Disassembly And Reassembly: Notes

G13323285

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
