Notes
Removal And Installation: Notes
Pre-removal and post-installation operation
Liftgate Spoiler (Refer to
LIFTGATE SPOILER
).
Rear Wiper Blade and Arm Assembly Removal and Installation (Refer to
REAR WIPER AND WASHER
).
Liftgate Trim Removal and Installation (Refer to
LIFTGATE TRIM
).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

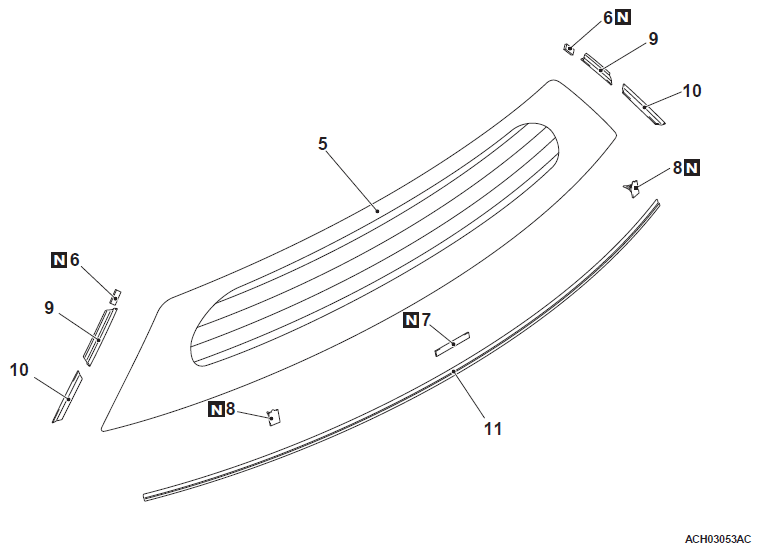

<LIFTGATE EXTRA WINDOW GLASS>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
