Removal And Installation: Notes

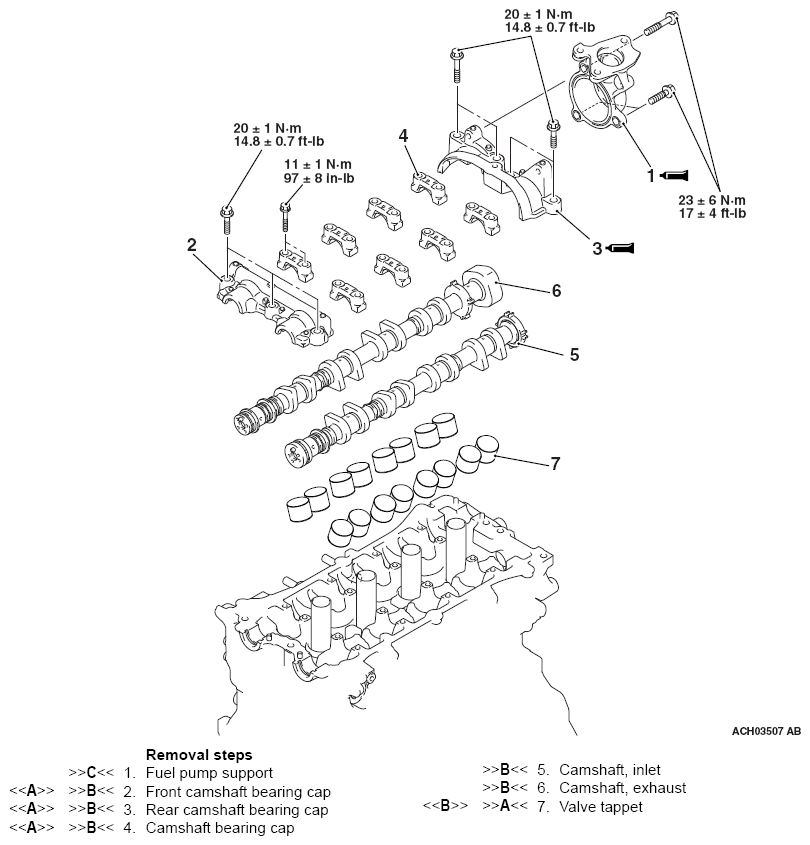

Fig 1: Removing/Installing Camshaft Components Location With Torque Specification

G13322708

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
