>>D<< Timing Chain Case Cover B Installation

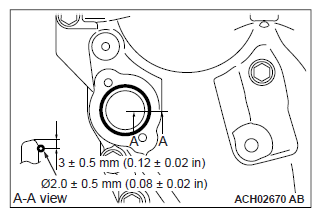

Apply liquid gasket of ø2 ± 0.5 mm (0.08 ± 0.02 inch) of thickness in diameter to the timing chain case cover B or the timing chain case.

Specified sealant: ThreeBond 1217G or equivalent

G12143721Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
