Removal And Installation
Pre-removal and Post-installation Operation
Engine Cover Removal and Installation (Refer to
ENGINE COVER ASSEMBLY
).
Charge air cooler Outlet Air Pipe A Removal and Installation (Refer to
CHARGE AIR COOLER
).
Vacuum pipe Removal and Installation (Refer to
TURBOCHARGER ASSEMBLY
).

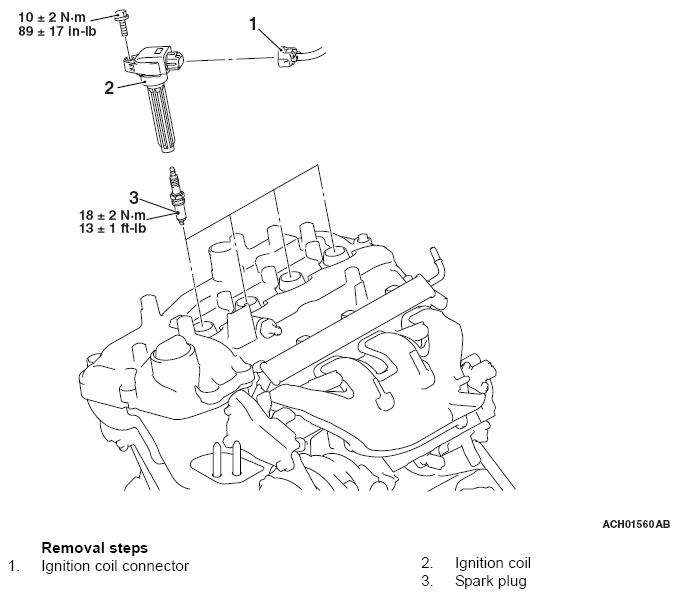

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
