Configuration Diagrams: Liftgate

CAUTION: Aluminum wires are partially used for the liftgate wiring harness.

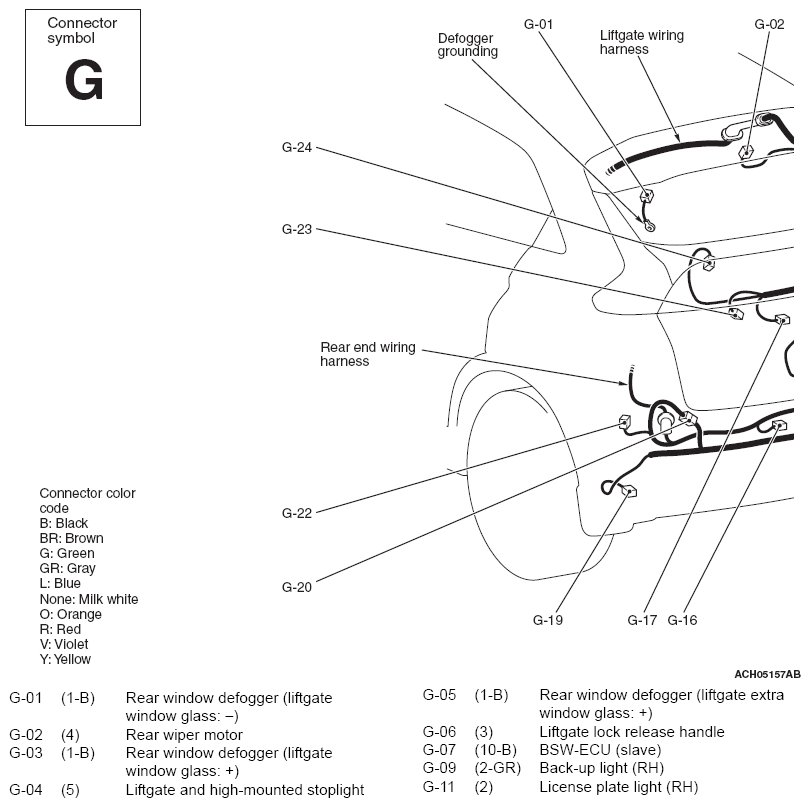

G13325681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

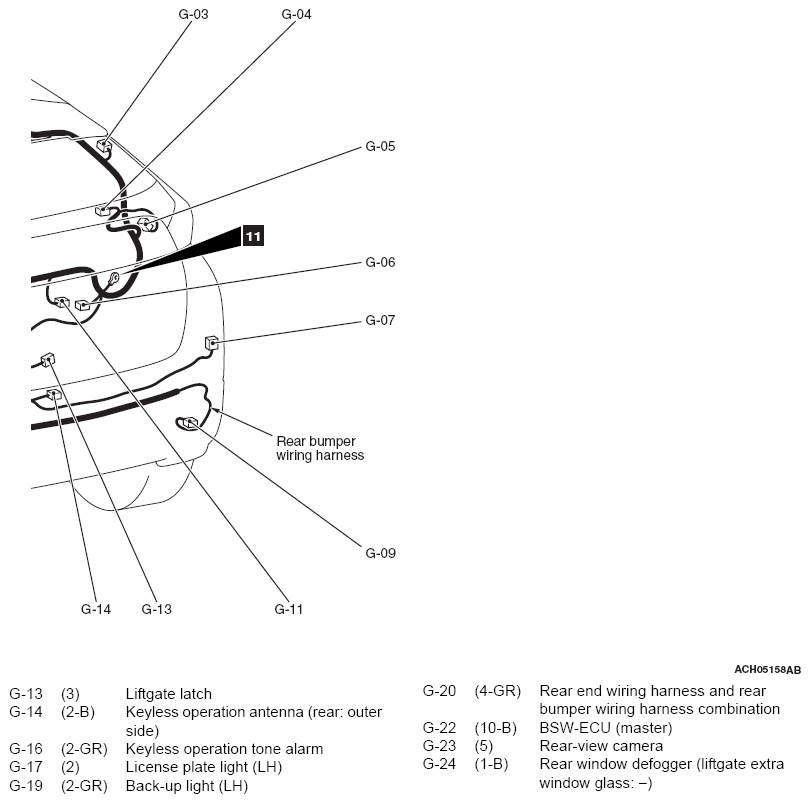

G13325682Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
