Engine Compartment

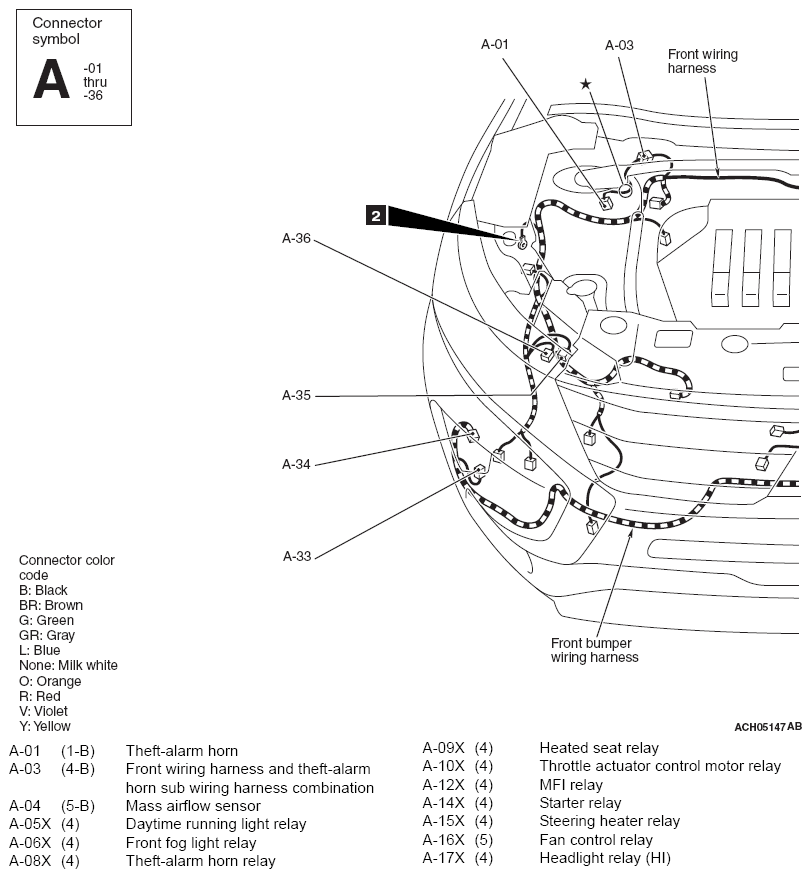

G13325650Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

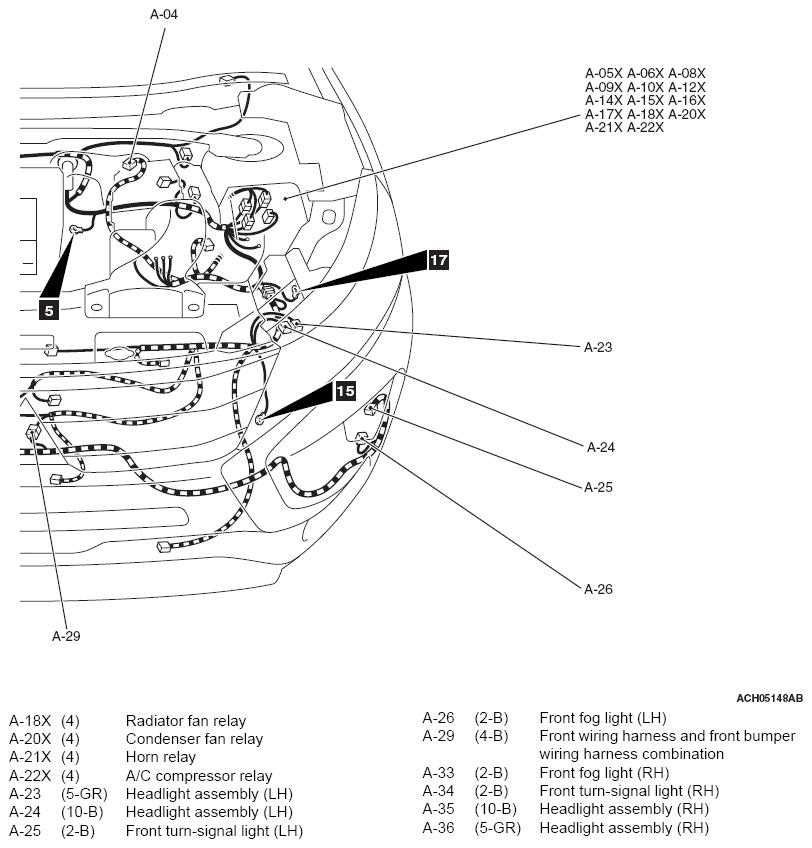

G13325651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

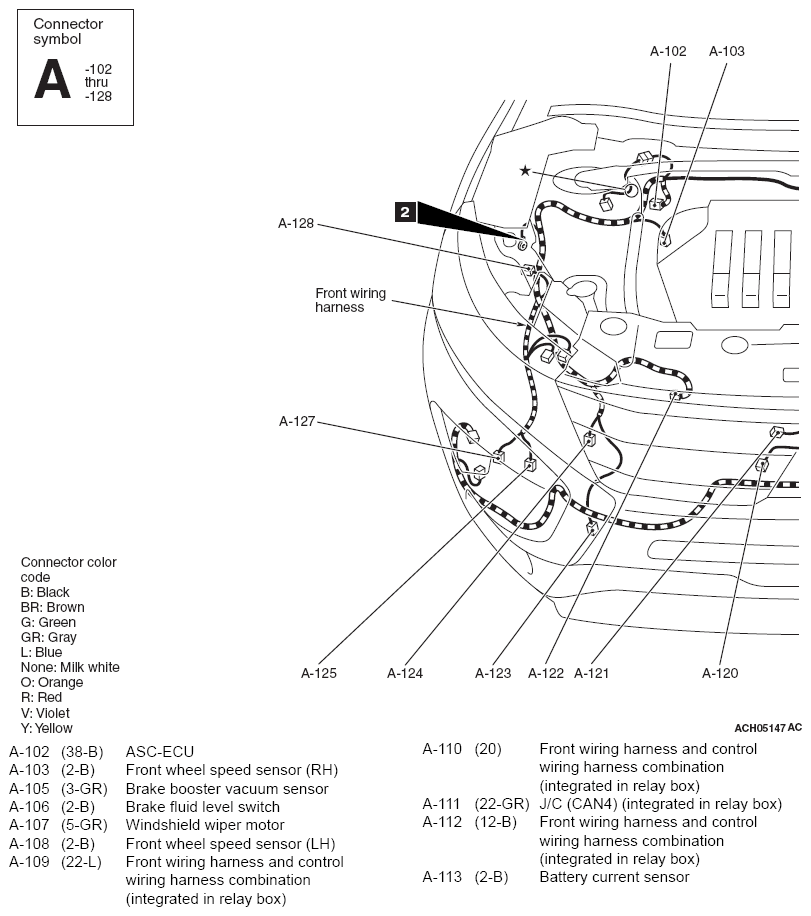

G13325652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

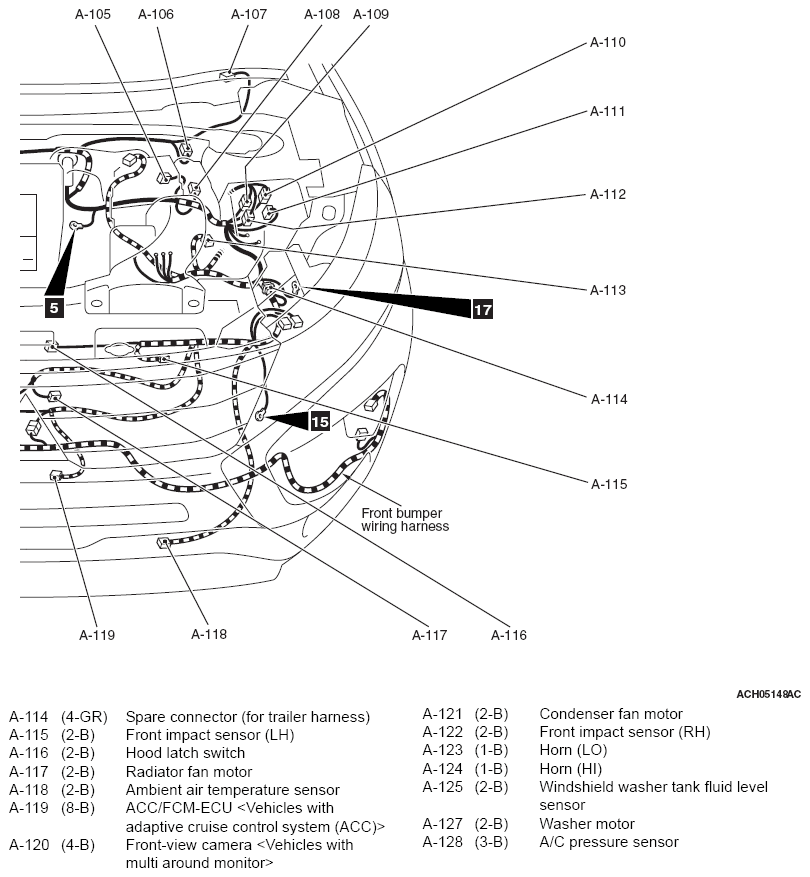

G13325653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
