Engine And Transaxle

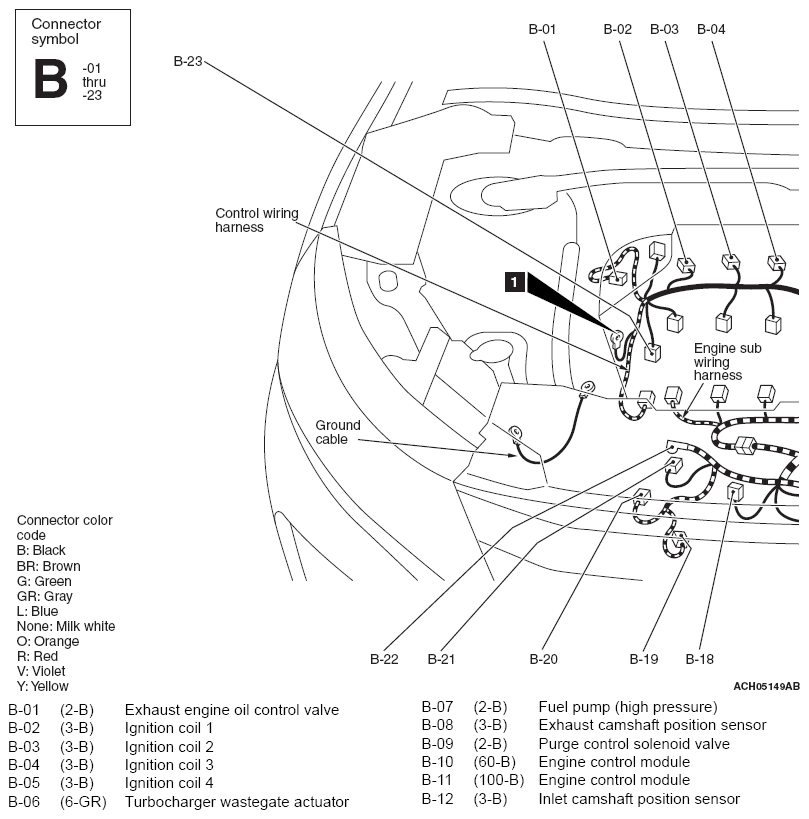

G13325654Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

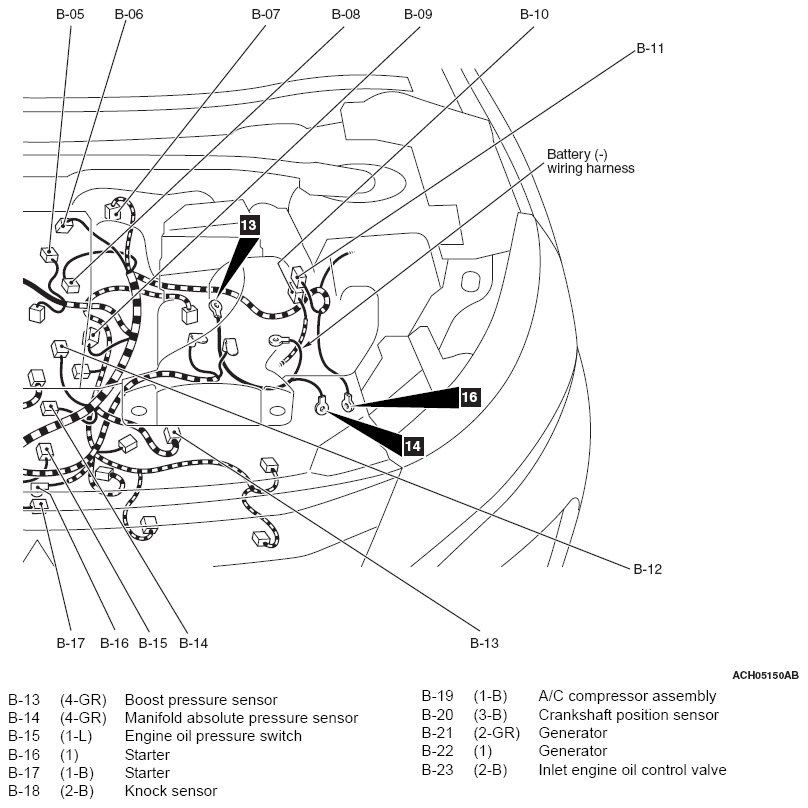

G13325655Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

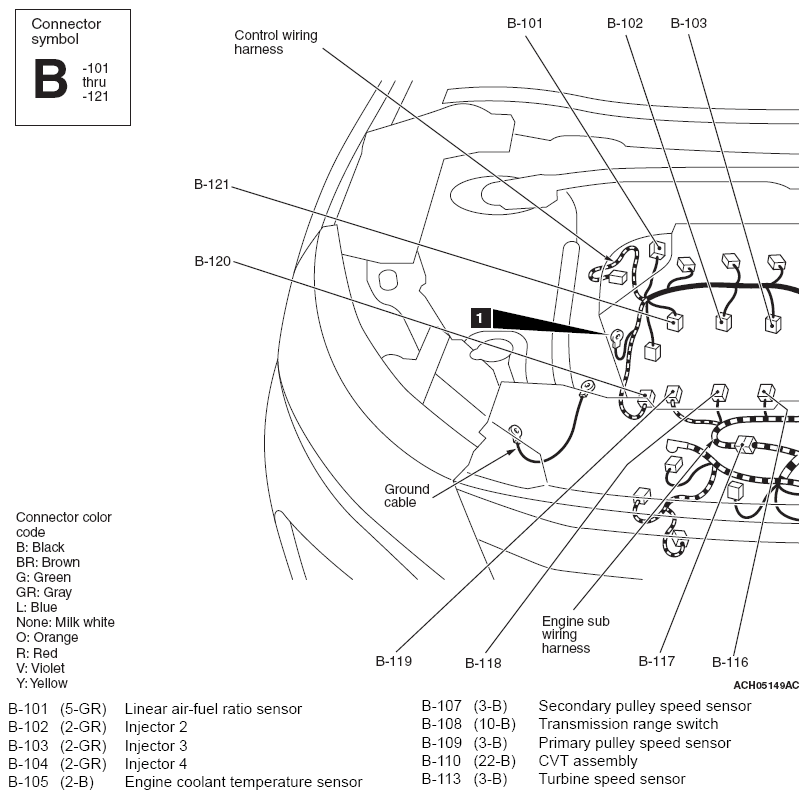

G13325656Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

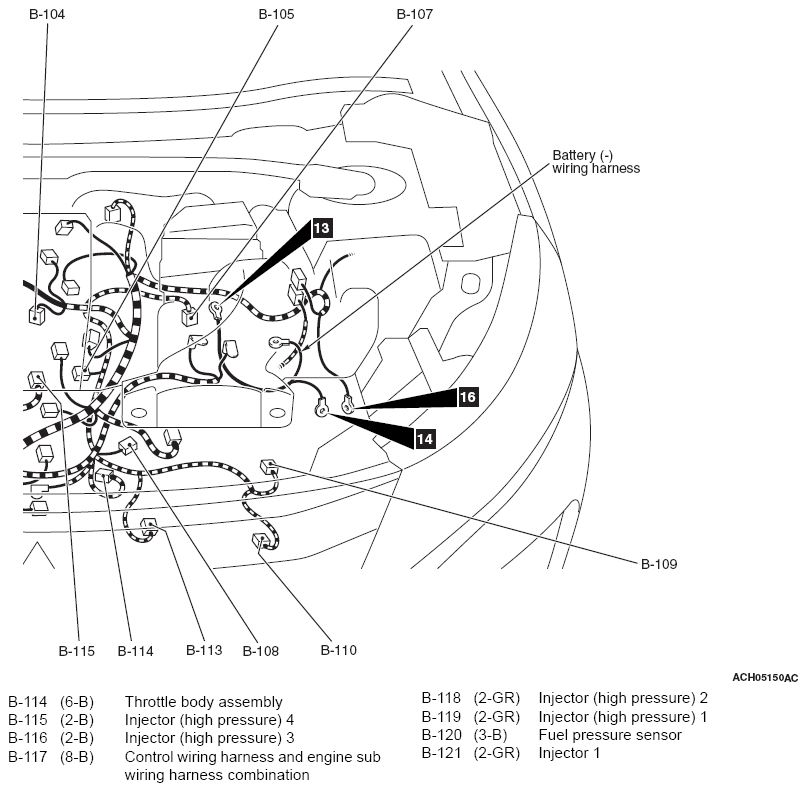

G13325657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
