Removal And Installation: Notes

Pre-removal and post-installation operation

• Engine Room Under Cover Front A, B and Engine Room Side Cover (LH) Removal and Installation (Refer to UNDER COVER ).
• Battery and Battery Tray Removal and Installation (Refer to BATTERY ).
• Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).
• Engine Control Module Removal and Installation (Refer to ENGINE CONTROL MODULE ).

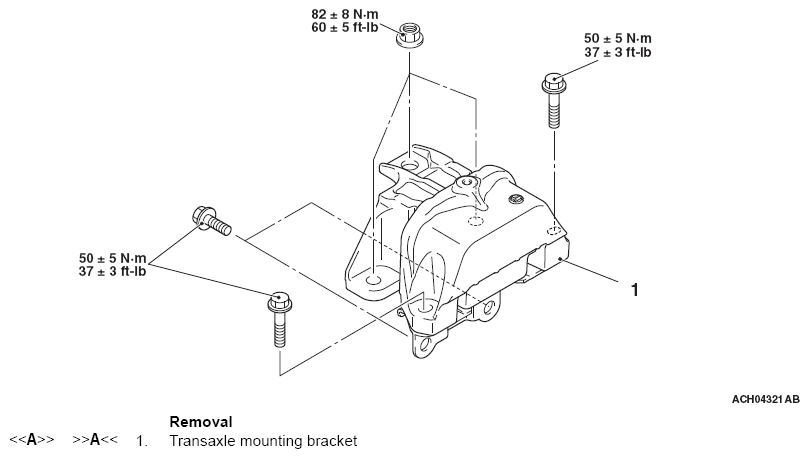

  Fig 1: Removing/Installing Transaxle Mounting Components Location With Torque Specification

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
