Removal And Installation

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the "Removal and Installation" and "Disassembly and Assembly" service information.

Name	Symbol	Size (D X L) mm	Color	Shape
Tapping screw	a	5 X 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 X 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	c	5 X 12	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	d	5 X 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Washer assembly bolt	e	6 X 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

D: Thread diameter, L: Effective thread length

CAUTION:

Before removal and installation the SRS components, refer to SRS SERVICE PRECAUTIONS , KNEE AIR BAG MODULE and PASSENGER'S (FRONT) AIR BAG MODULE .
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

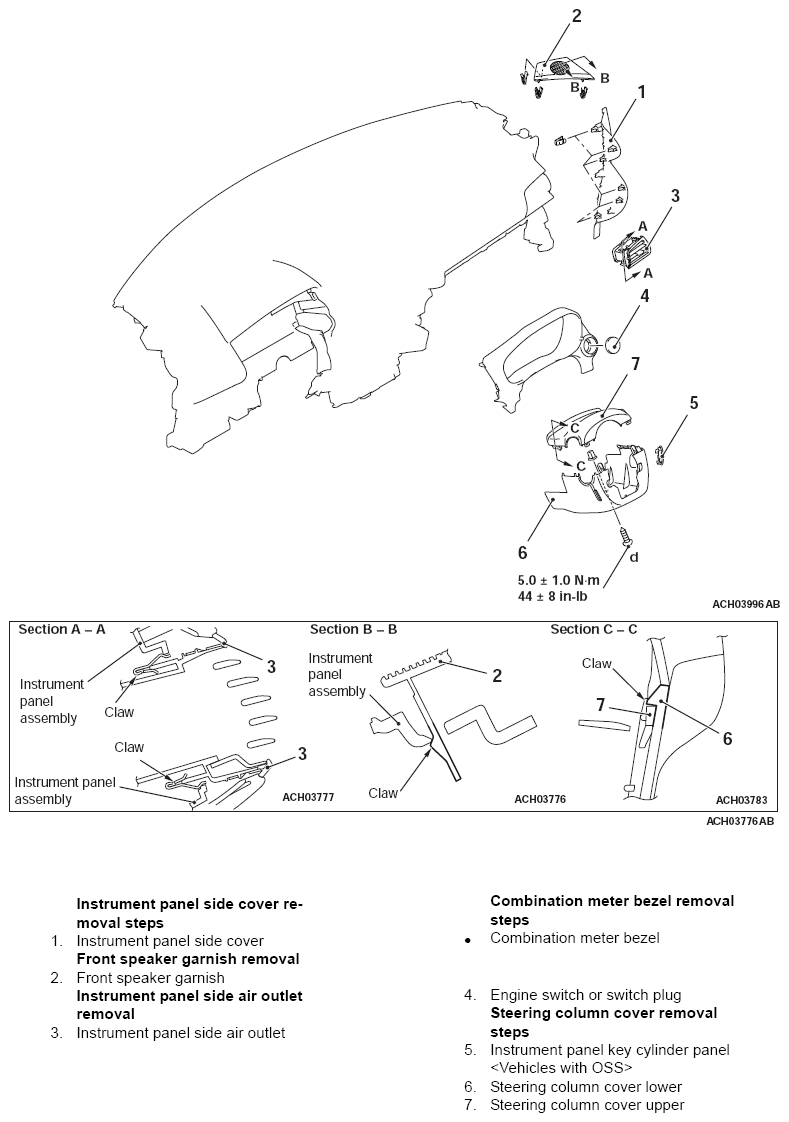

Fig 1: Removing/Installing Instrument Panel Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

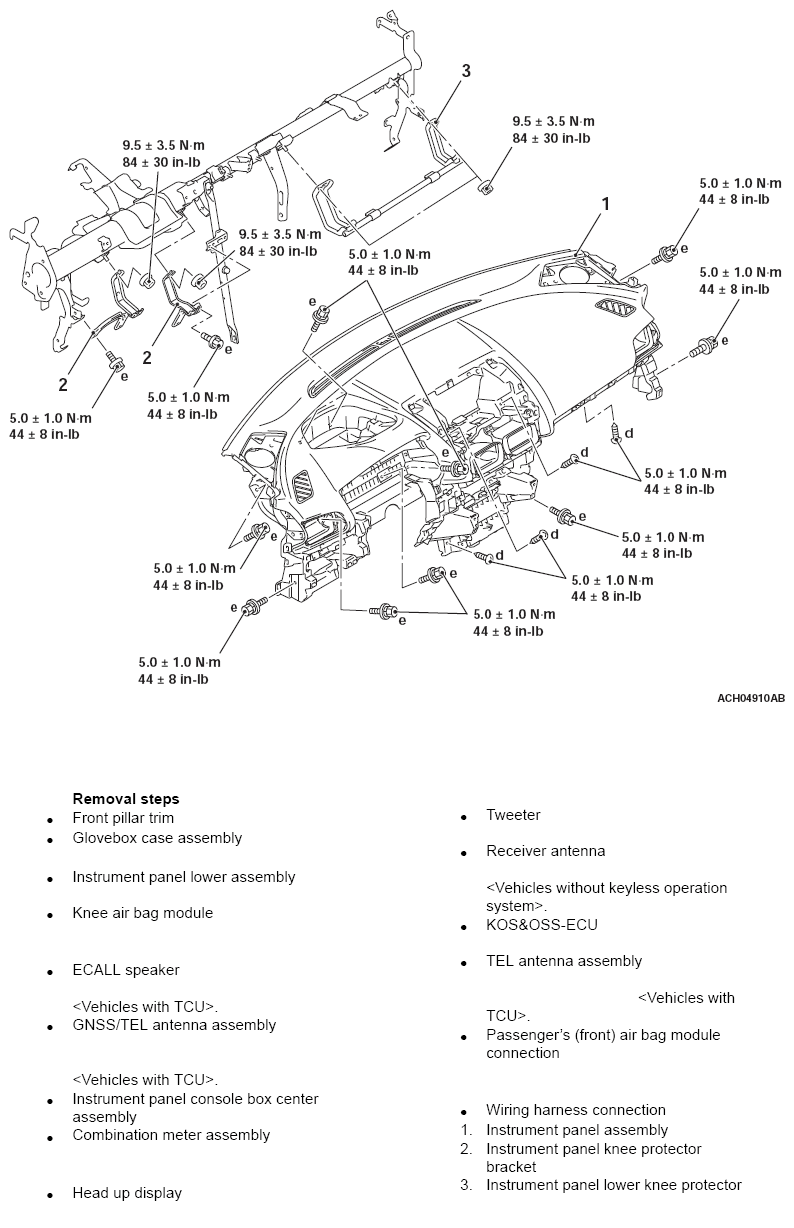

Fig 2: Removing/Installing Instrument Panel Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
