>>A<< Column Switch Assembly Installation

WARNING: This page is about a different car, the 2018 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

When installing a new column switch

With the retaining pin of the band clump pin installed, install the column switch by securely fitting the claw on the column switch into the groove on the column shaft. Then, remove the retaining pin and release the band clump pin.

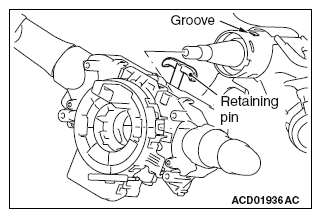

Fig 1: Retaining Pin And Groove On Column Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When installing the removed column switch

Using a wrench or similar tool, pinch and lift the band clump pin shown in the illustration.
Install the column switch by securely fitting the claw on the column switch into the groove on the column shaft.
Release the band clump pin.

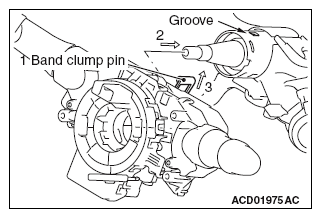

Fig 2: Installing Column Switch Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
