Diagnostic Test Mode

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

Enter the diagnostic test mode according to the following steps:

  1. Turn the Ignition switch to the "ACC" or "ON" position and switch off the radio and CD player.
  2. Press the following buttons in that order within 60 seconds from step (1).
    1. [CH1] button.
    2. Fast-reverse/Track down button
    3. Fast-forward/Track up button
    4. [CH4] button.
    NOTE:
    • When the "Power" button of the radio and CD player is pressed during the diagnostic test mode, the diagnostic test mode will be cancelled, thus switching off the radio and CD player. However, if the "Power" button is pressed while the hands free module is being updated, the update will not be cancelled.
    • When an invalid button is pressed during diagnostic test mode except the hands free module update, the diagnostic test mode will be cancelled, thus switching off the radio and CD player.
    • During the diagnostic test mode, voice which is input through the microphone unit is played through a relevant loudspeaker.

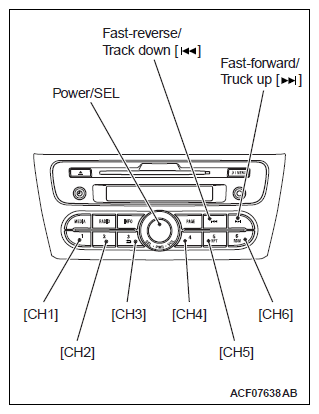

    Fig 1: Radio And CD Player Buttons
    G11281089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. "AUDIO DIAG" is displayed.
  4. Turn the "SEL" button clockwise to display "HFM DIAG."
  5. When the "SEL" button is short pressed with "HFM DIAG" shown, "HFM DIAG TOP" will be displayed.

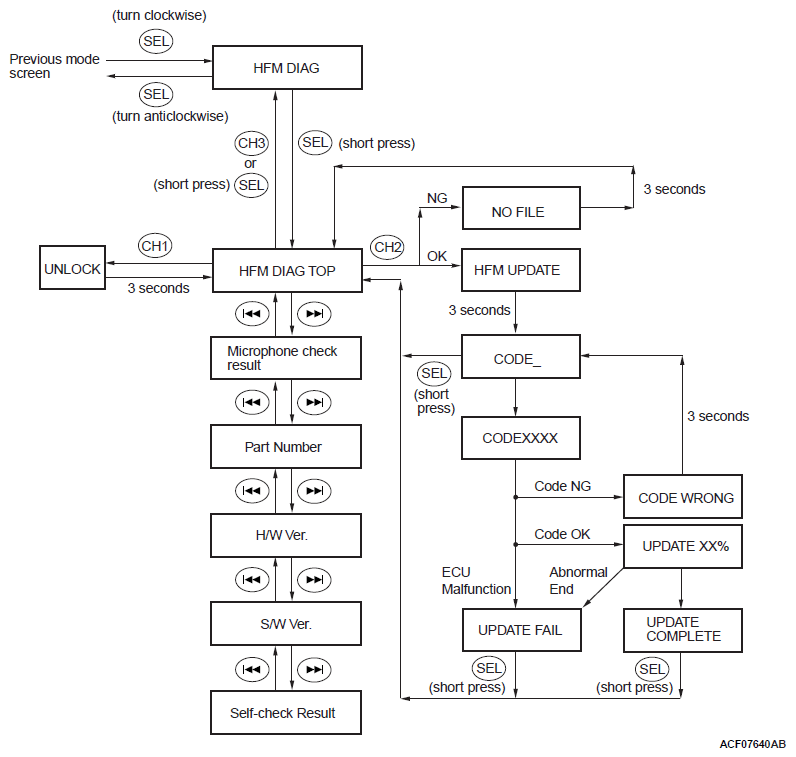

Fig 2: Hands-Free Interface System Communication Diagram
G11281102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Description in the illustrations Actual display Condition
UNLOCK Unlock comp Four-digit password, which has been set by the security function, will be erased.
HFM DIAG TOP HFM DIAG Displayed when the diagnostic test mode is being entered.
Result of microphone check MIC Short Displayed when the line between the microphone and the hands free module is short-circuited.
MIC Open Displayed when the line between the microphone and the hands free module is open-circuited.
MIC OK Normal status (the line between the microphone and the hands free module is not open/short-circuited)
Part number PN XXXXXXXX Eight-digit part number is displayed.
H/W Ver. H/W XX Two-digit hardware version is displayed.
S/W Ver. S/W XXXXXXX Seven-digit software version is displayed.
Self-check result Selftest OK Displayed when the hands free module is not defective.
Selftest NG Displayed when the hands free module is suspected to be defective.
NOTE: Turn the ignition switch to the "LOCK" (OFF) position once when ERROR is displayed. Enter the diagnostic test mode by turning the ignition switch to the "ON" position again. If the self-check result shows ERROR again, the hands free module is determined to be defective.
NO FILE No file A USB device stores no data.
HFM UPDATE Update Displayed when the hands free module update file is found, at the transition to the hands free module update mode, in the USB memory that is connected to the USB connector.
CODE_ CODE - - - - Input four-digit code for update. Use the CH button when a code is input.
CODE XXXX Code XXXX XXXX after Code shows the numbers from 1 to 6, corresponding to the buttons CH1 to CH6.
CODE WRONG Code wrong The code, which has been input, is wrong.
UPDATING XX% Updating XX% Displayed when updating is carried out.
UPDATING COMPLETE Update comp The updating mode is complete.
UPDATE FAIL Update fail Displayed when the update of the hands free module fails.
