Home >> Mitsubishi >> 2019 >> RVR ES, Standard Trans >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 12 (Electronic Control (AWD)) >> Electronic Control Coupling >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

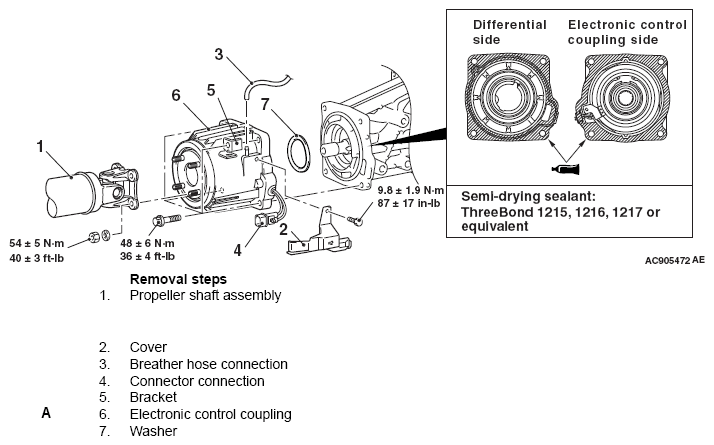

Fig 1: Electronic Control Coupling Components With Torque Specification
G12674765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
