Periodic Reminder Schedule Set

WARNING: This page is about a different car, the 2019 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

The service reminder schedule can be changed.

NOTE: In addition to the operation of the scan tool (M.U.T.-III), the schedule can be changed by operating the meter information switch on the combination meter. Refer to HOW TO CANCEL THE SERVICE REMINDER WARNING .
  1. On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
    NOTE: The screen indicates that the current schedule (No. 7in the data list) has been set to "Normal."

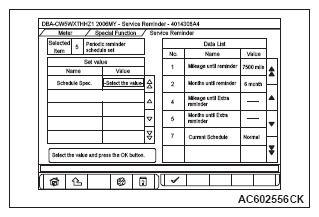

    G12686624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Set the schedule to be changed from "Set value."
  3. Press the "OK" button.

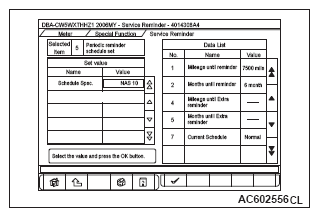

    G12686625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. The schedule is changed.
    NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 10."

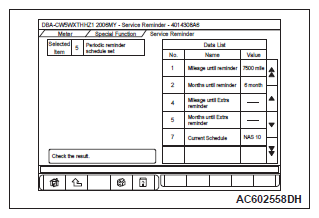

    G11281000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
