Liftgate Lock Release Handle (Liftgate Open Switch) Check

WARNING: This page is about a different car, the 2019 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
Switch position Terminal number Normal value
Push (open) 1 - 2 Continuity exists (2 ohms or less)
Release 1 - 2 No continuity

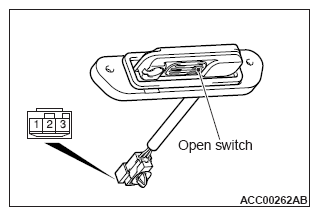

G10224736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
