Home
>>
Mitsubishi
>>
2019
>>
RVR ES, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>

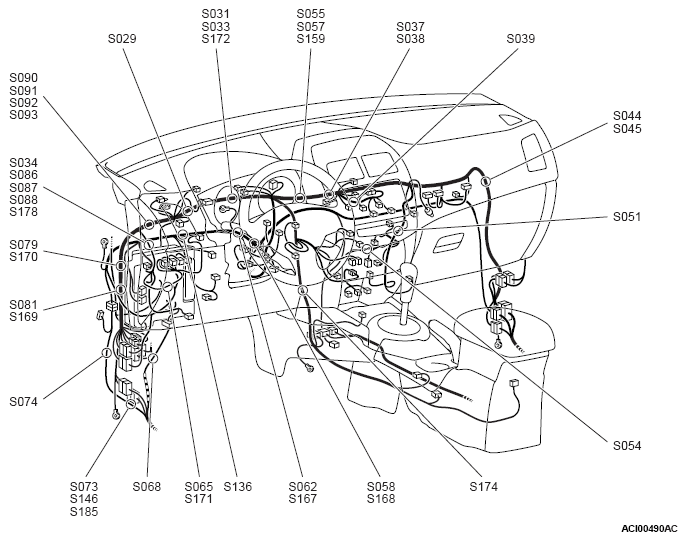

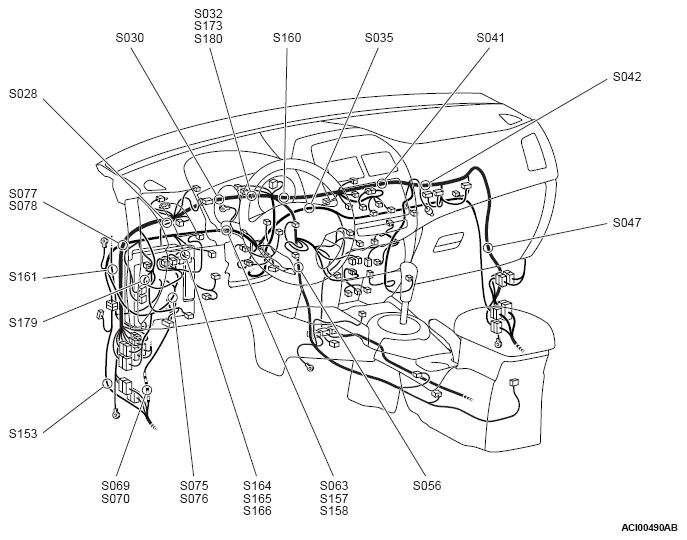

Splice Locations
>>
Dash Panel
Dash Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
