Engine And Transaxle

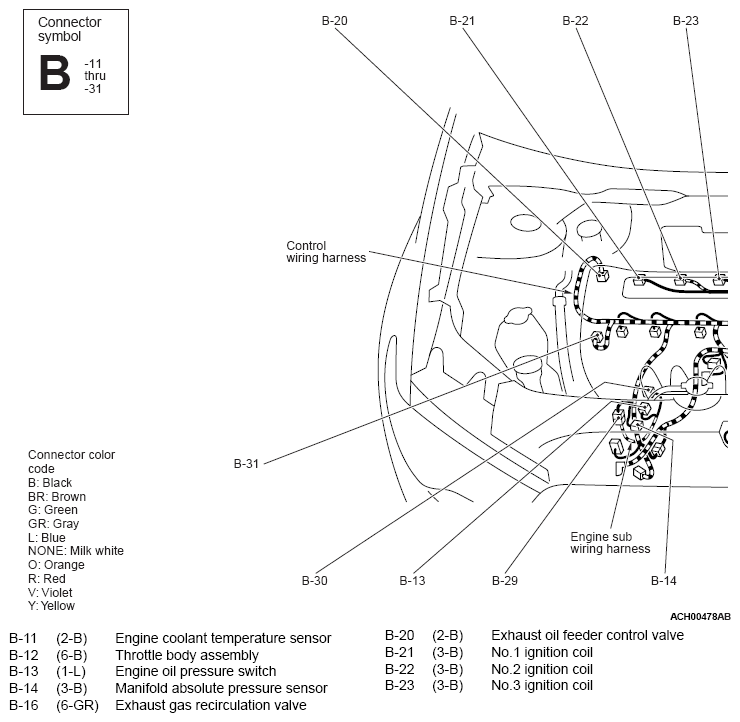

G12669729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

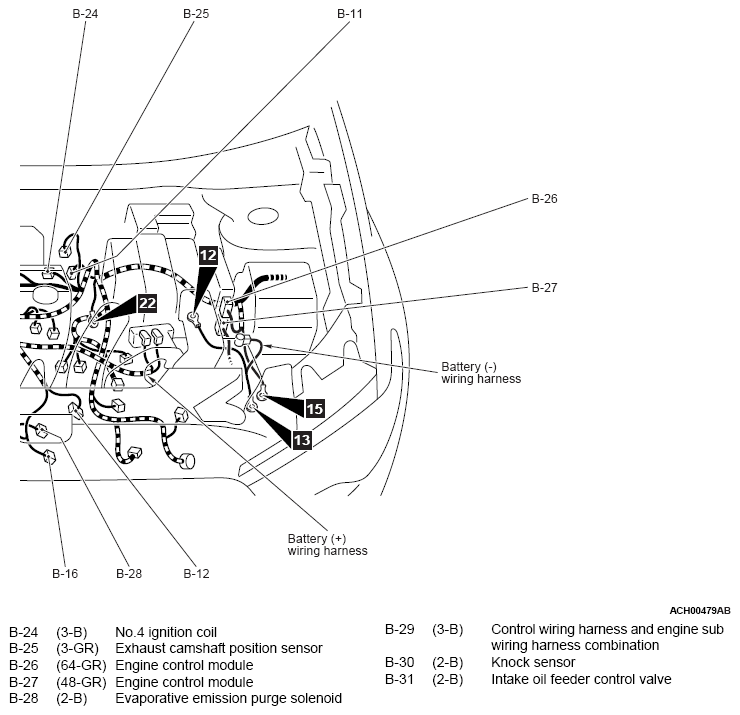

G12669730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

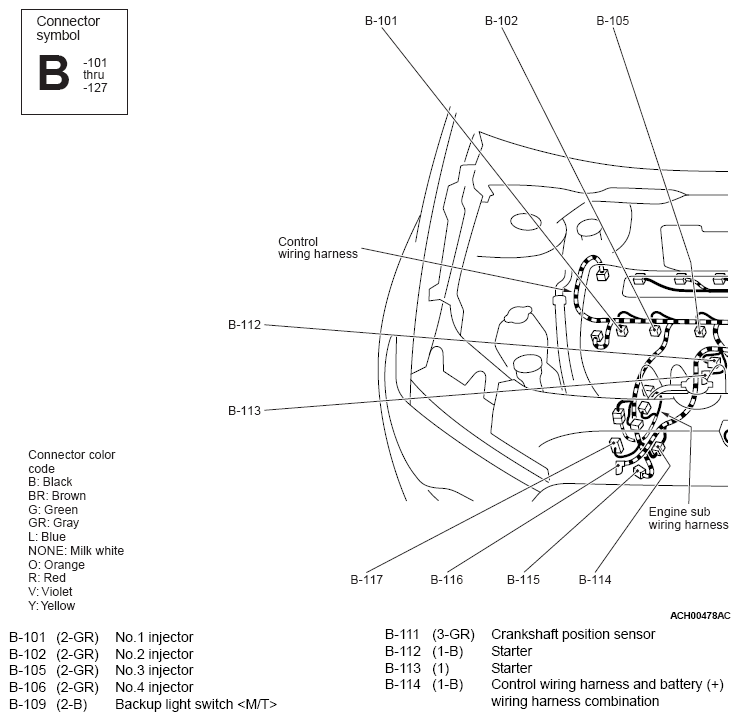

G12669731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

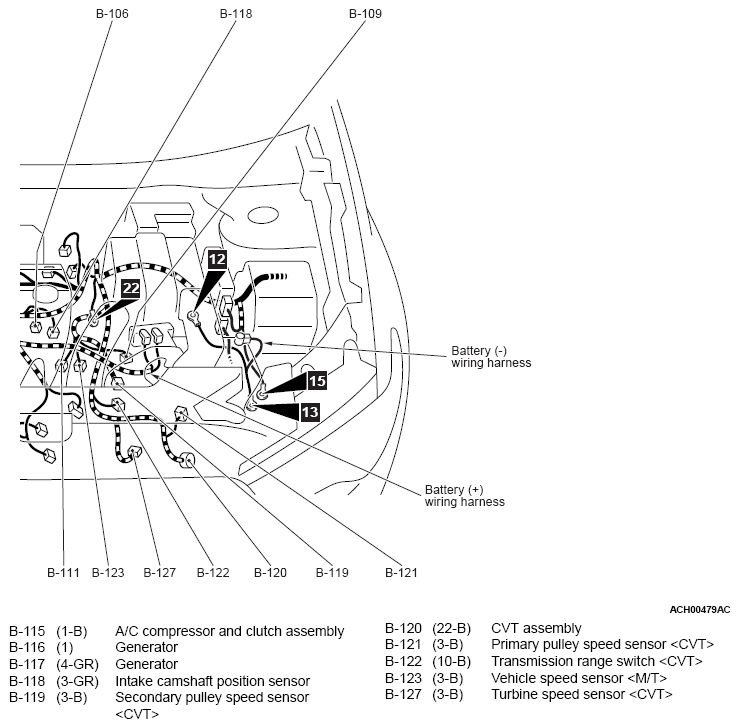

G12669732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
