Dash Panel

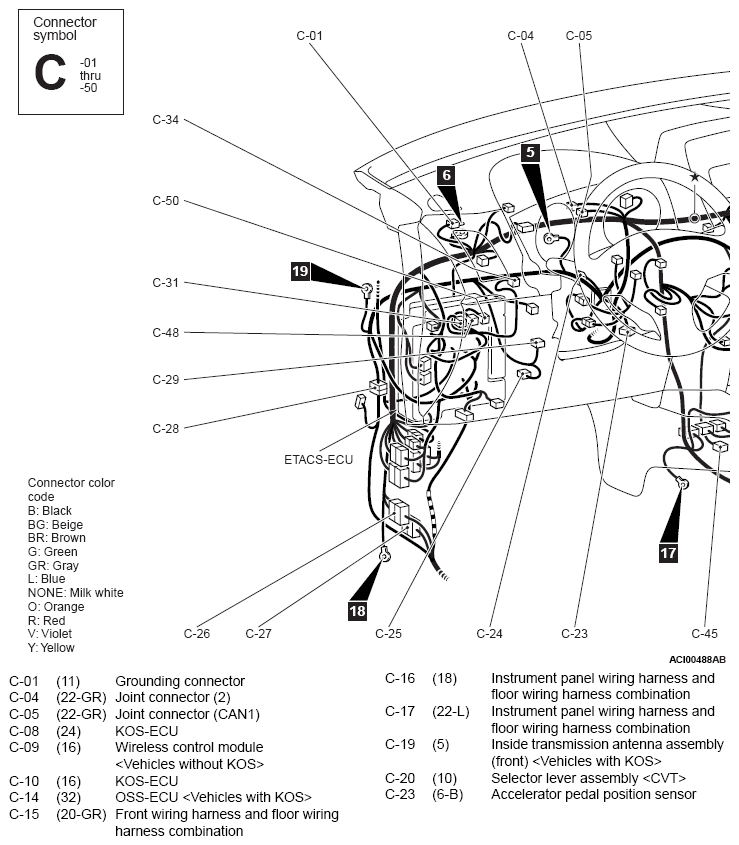

G12669733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

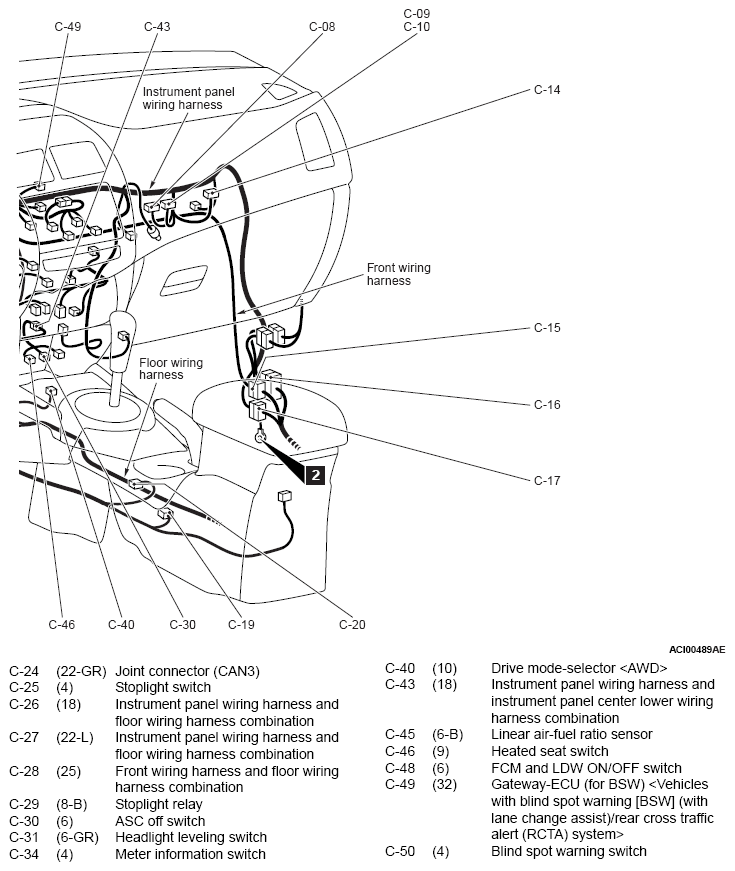

G12669734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

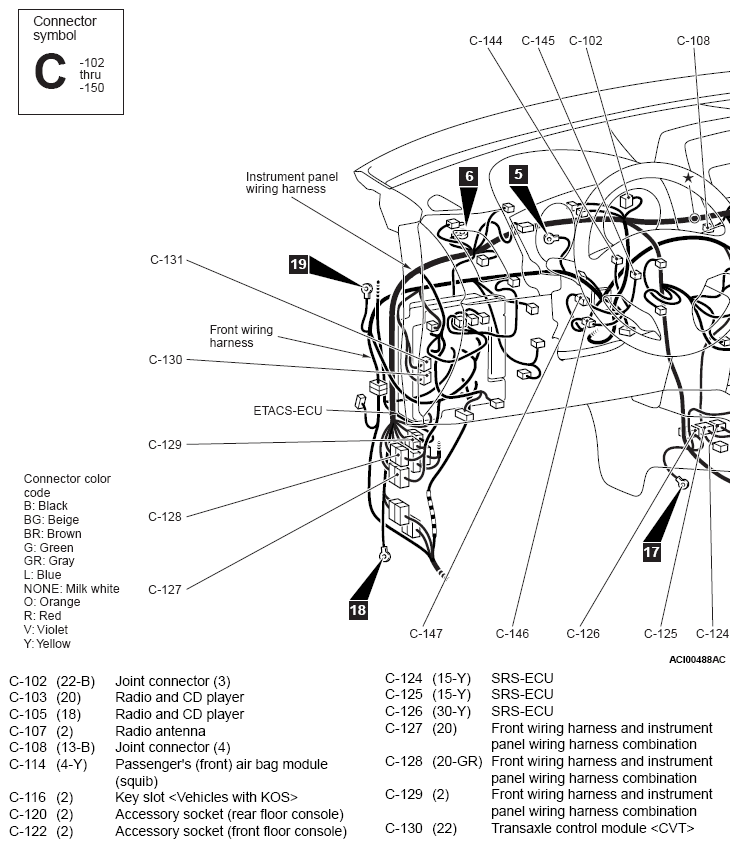

G12669735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

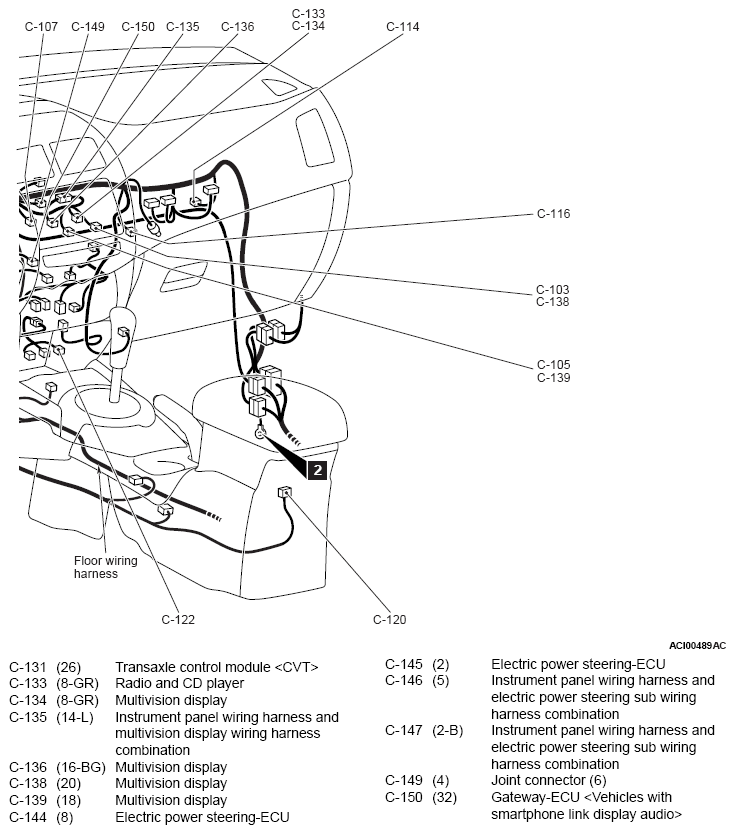

G12669736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

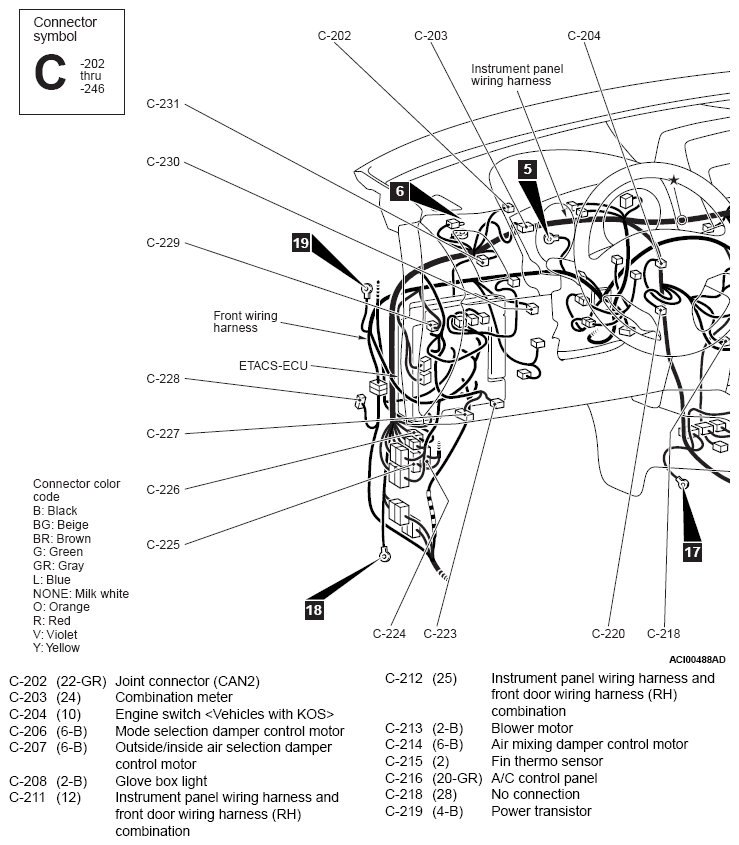

G12669737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

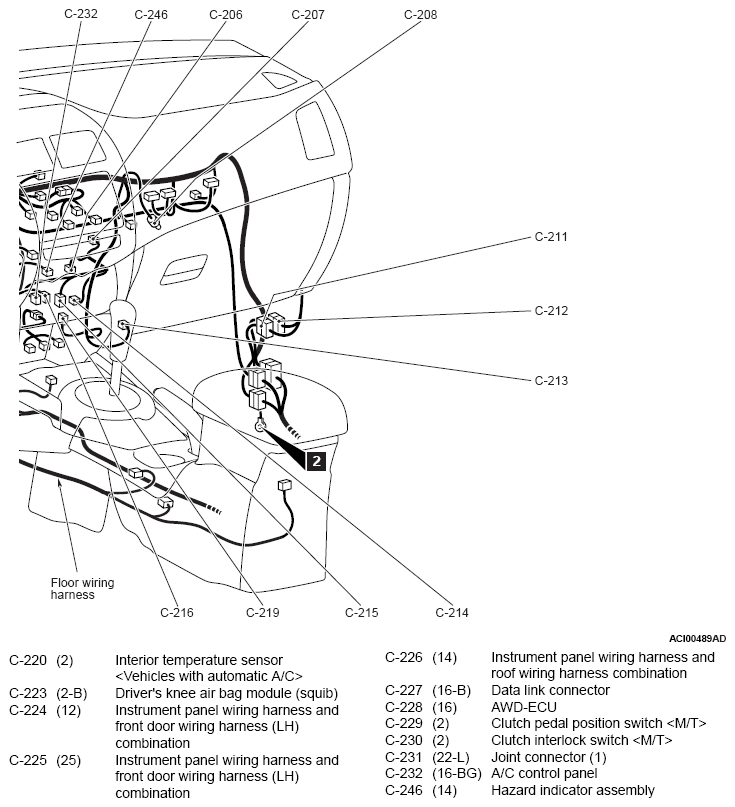

G12669738Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

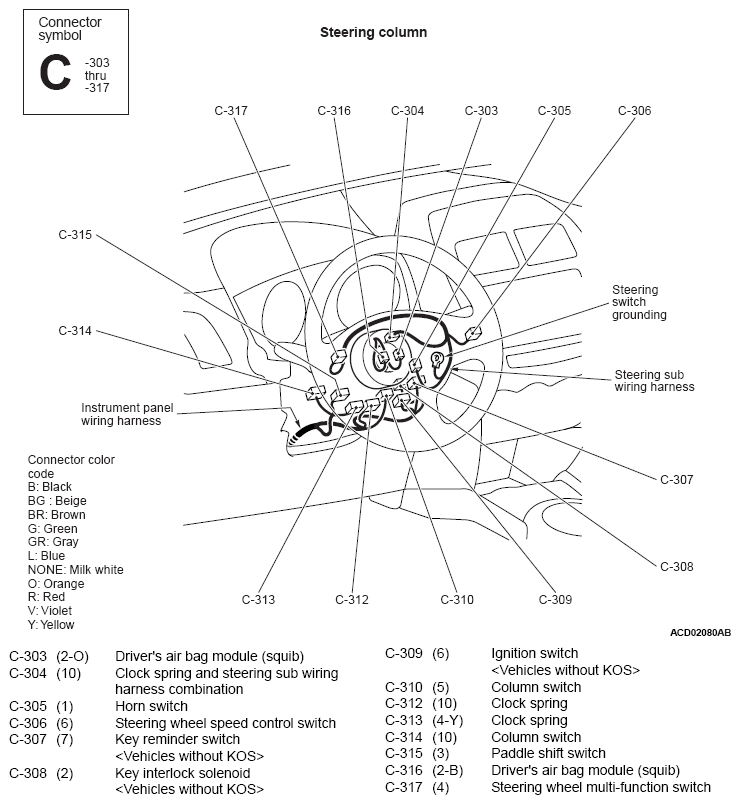

G12669739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

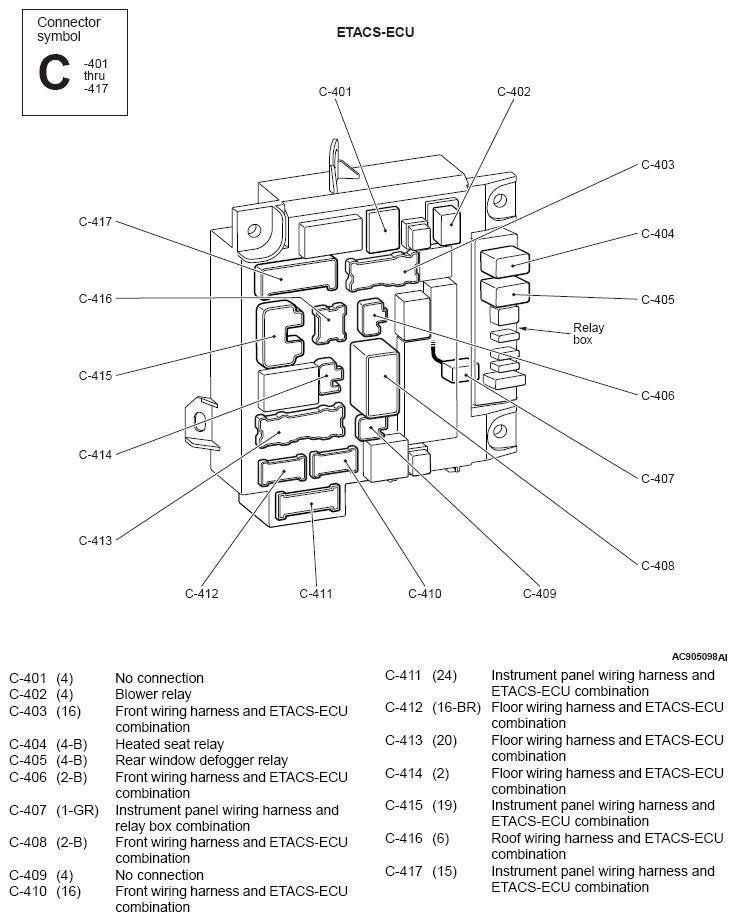

G12669740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
