Home >> Mitsubishi >> 2019 >> RVR ES, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Interior >> Sunshade Assembly >> Sunshade Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

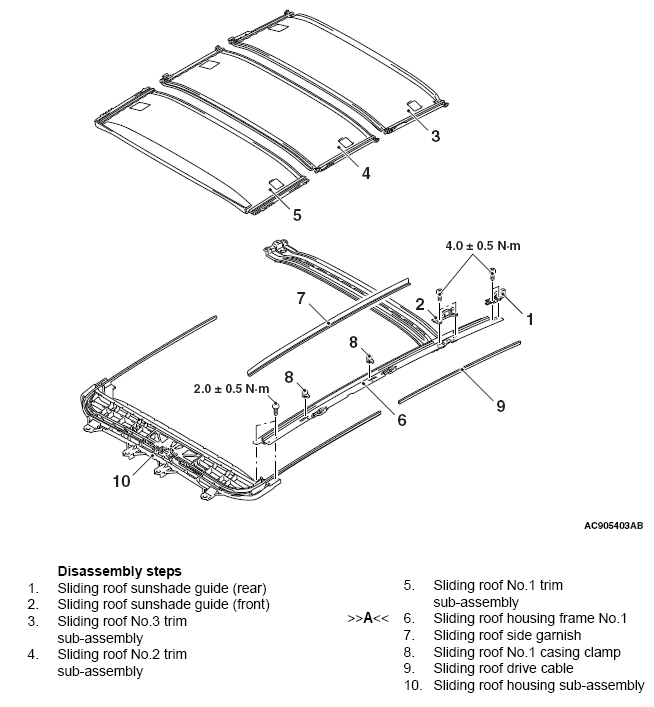

Fig 1: Disassembling/Assembling Sunshade Assembly Components With Torque Specification

G12678250

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
