Vehicles For CANADA
| Item | GA2W | |||
|---|---|---|---|---|
| XTMHL3M | XTMHZL3M | |||

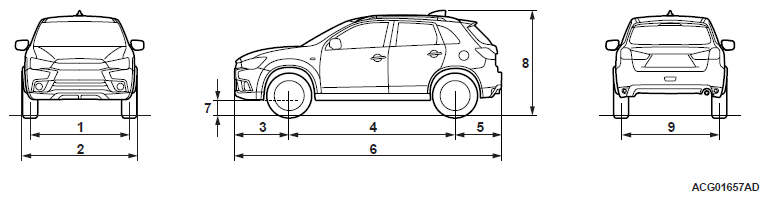

| Vehicle dimension mm (in) | Front track | 1 | 1, 525 (60.0)(1) 1, 540 (60.6)(2) |
1, 525 (60.0)(1) 1, 540 (60.6)(2) |
| Overall width | 2 | 1, 810 (71.3) | 1, 810 (71.3) | |
| Front overhang | 3 | 930 (36.6) | 930 (36.6) | |
| Wheel base | 4 | 2, 670 (105.1) | 2, 670 (105.1) | |
| Rear overhang | 5 | 765 (30.1) | 765 (30.1) | |
| Overall length | 6 | 4, 365 (171.9) | 4, 365 (171.9) | |
| Ground clearance (unladen) | 7 | 215 (8.5) | 215 (8.5) | |
| Overall height (unladen) | 8 | 1, 645 (64.8) | 1, 645 (64.8) | |
| Rear track | 9 | 1, 525 (60.0)(1) 1, 540 (60.6)(2) |
1, 525 (60.0)(1) 1, 540 (60.6)(2) |
|
| Vehicle weight kg (lb) | Curb weight | Without optional parts | 1, 410 (3, 109) | 1, 475 (3, 252) |
| With optional parts | 1, 437 (3, 168) | 1, 502 (3, 311) | ||
| Max. gross vehicle weight | 1, 970 (4, 343) | 1, 970 (4, 343) | ||
| Max. axle weight rating-front | 1, 030 (2, 271) | 1, 030 (2, 271) | ||
| Max. axle weight rating-rear | 1, 000 (2, 205) | 1, 000 (2, 205) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model code | 4B11 | 4B11 | |
| Type | DOHC MIVEC | DOHC MIVEC | ||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | 1, 998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 110/6, 000 (148/6, 000) | 110/6, 000 (148/6, 000) | ||
| Maximum torque N-m/r/min (ft-lb/r/min) | 197/4, 200 (145/4, 200) | 197/4, 200 (145/4, 200) | ||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transmission | Model code | F1CJC | W1CJC | |
| Type | FWD, INVECS-III CVT | AWD, INVECS-III CVT | ||
| Minimum turning radius m (ft) | Body | 5.7 (18.7) | 5.7 (18.7) | |
| Wheel | 5.3 (17.4) | 5.3 (17.4) | ||
| Item | GA5W | |||
|---|---|---|---|---|
| XTXHZL3M | XTFHZL3M | |||
| Vehicle dimension mm (in) | Front track | 1 | 1, 540 (60.6) | 1, 540 (60.6) |
| Overall width | 2 | 1, 810 (71.3) | 1, 810 (71.3) | |
| Front overhang | 3 | 930 (36.6) | 930 (36.6) | |
| Wheel base | 4 | 2, 670 (105.1) | 2, 670 (105.1) | |
| Rear overhang | 5 | 765 (30.1) | 765 (30.1) | |
| Overall length | 6 | 4, 365 (171.9) | 4, 365 (171.9) | |
| Ground clearance (unladen) | 7 | 215 (8.5) | 215 (8.5) | |
| Overall height (unladen) | 8 | 1, 645 (64.8) | 1, 645 (64.8) | |
| Rear track | 9 | 1, 540 (60.6) | 1, 540 (60.6) | |
| Vehicle weight kg (lb) | Curb weight | Without optional parts | 1, 490 (3, 285) | 1, 490 (3, 285) |
| With optional parts | 1, 546 (3, 408) | 1, 546 (3, 408) | ||
| Max. gross vehicle weight | 1, 970 (4, 343) | 1, 970 (4, 343) | ||
| Max. axle weight rating-front | 1, 030 (2, 271) | 1, 030 (2, 271) | ||
| Max. axle weight rating-rear | 1, 000 (2, 205) | 1, 000 (2, 205) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model code | 4B12 | 4B12 | |
| Type | DOHC MIVEC | DOHC MIVEC | ||
| Total displacement mL | 2, 360 (144.0) | 2, 360 (144.0) | ||
| Maximum output kW/r/min (HP/r/min) | 125/6, 000 (168/6, 000) | 125/6, 000 (168/6, 000) | ||
| Maximum torque N-m/r/min (ft-lb/r/min) | 226/4, 100 (167/4, 100) | 226/4, 100 (167/4, 100) | ||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transmission | Model code | W1CJC | W1CJC | |
| Type | AWD, INVECS-III CVT | AWD, INVECS-III CVT | ||
| Minimum turning radius m (ft) | Body | 5.7 (18.7) | 5.7 (18.7) | |
| Wheel | 5.3 (17.4) | 5.3 (17.4) | ||
