Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Pre-removal and post-installation operation

Removal and installation of the instrument panel cover lower (Refer to INSTRUMENT CENTER PANEL .)

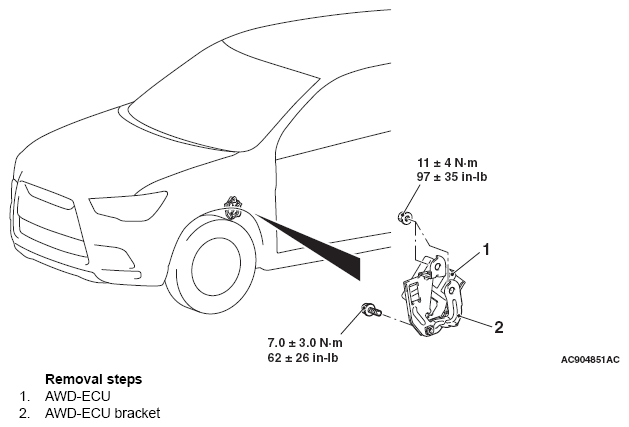

Fig 1: AWD-ECU Components With Torque Specification
G12674763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
