Section 12 (Propeller Shaft)
>>
Propeller Shaft
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.
Pre-removal and Post-installation operation
Transfer Oil Draining and Filling (Refer to
TRANSFER OIL CHANGE
).

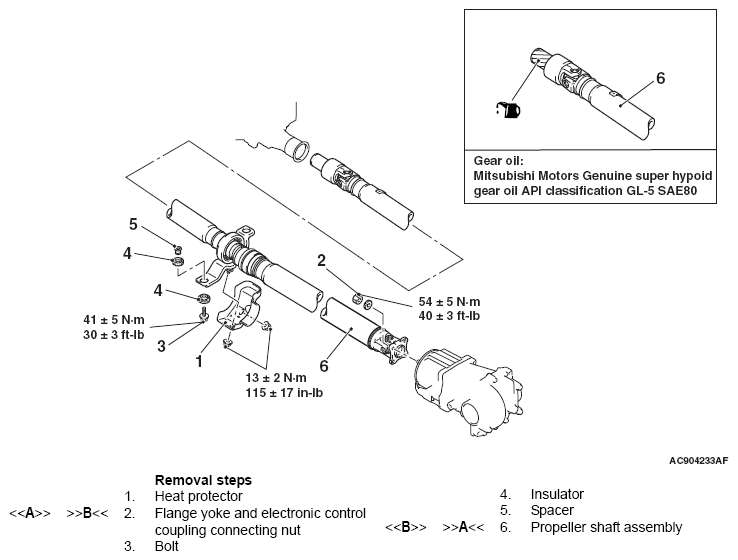

Fig 1: Propeller Shaft Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
