Lubrication Points

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

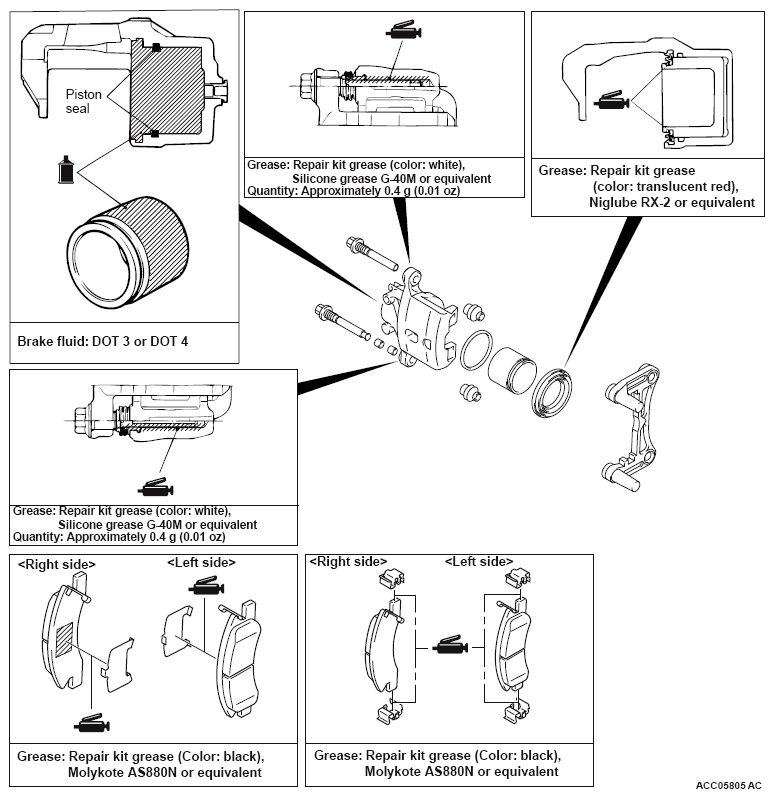

Fig 1: Locating Greasing Lubrication Point
G11466922Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
