Section 19 (Front Axle)
>>
Driveshaft Assembly
>>
Disassembly And Assembly
>>
Lubrication Points
Lubrication Points
WARNING:
This page is about a different car, the 2017 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

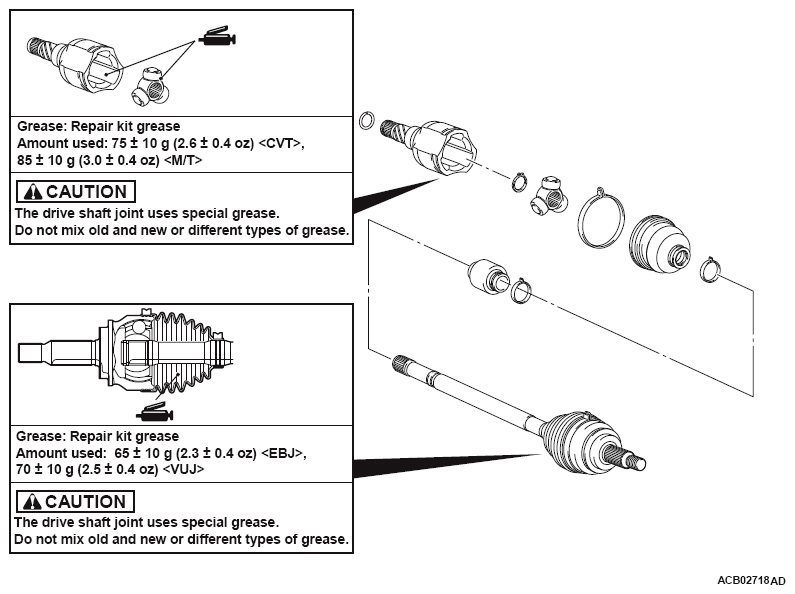

Fig 1: Front Axle Driveshaft Assembly Lubrication Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
