Mitsubishi
>>
2019
>>
RVR ES, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System
>>
Camshaft Position Sensor
>>
Removal And Installation
Removal And Installation

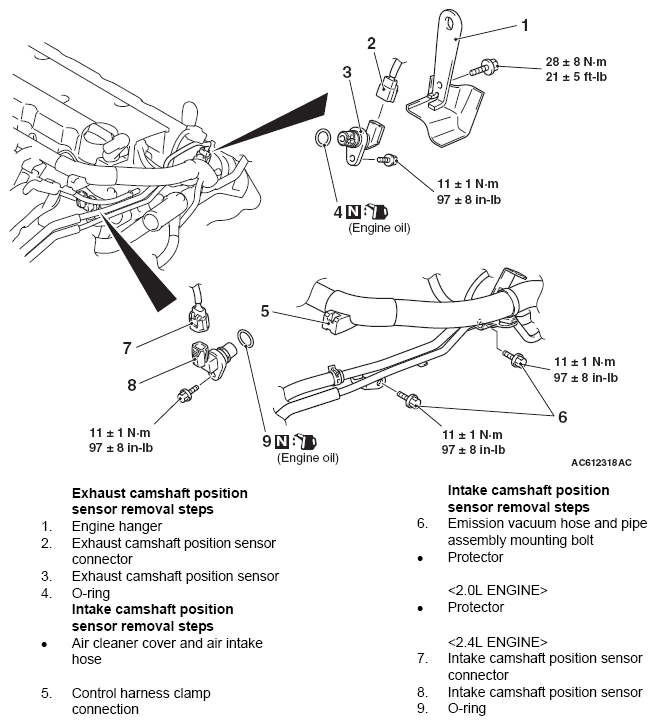

Fig 1: Camshaft Position Sensor Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
