Home >> Mitsubishi >> 2019 >> RVR ES, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.0L Engine) >> Piston And Connecting Rod >> Removal And Installation >> Notes

Removal And Installation: Notes

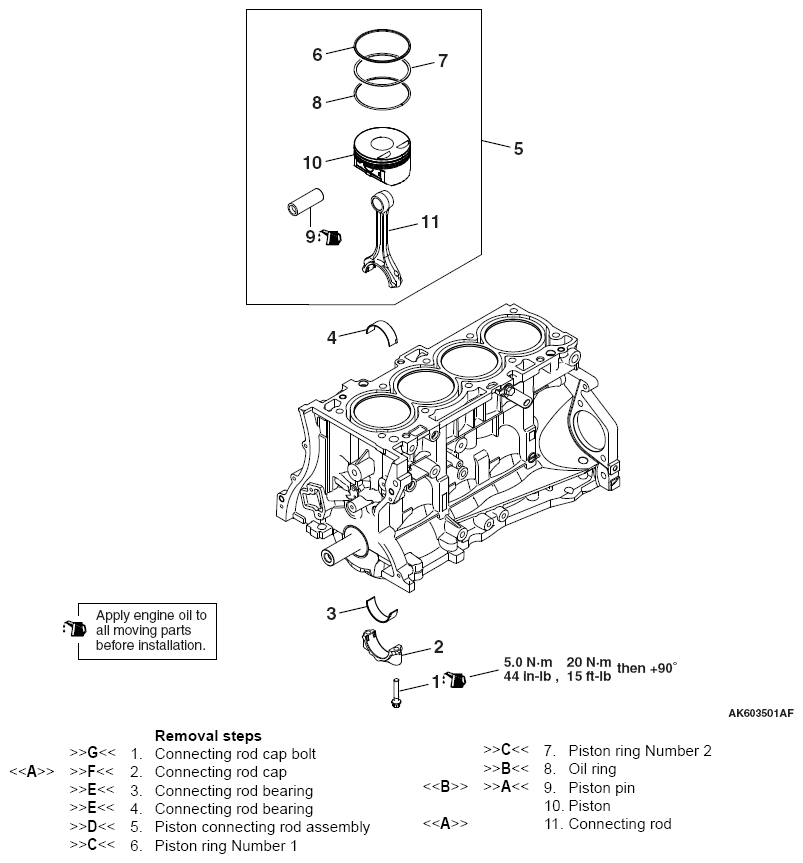

Fig 1: Piston And Connecting Rod Components With Torque Specification
G12664727Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
