Home >> Mitsubishi >> 2019 >> RVR ES, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.0L Engine) >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

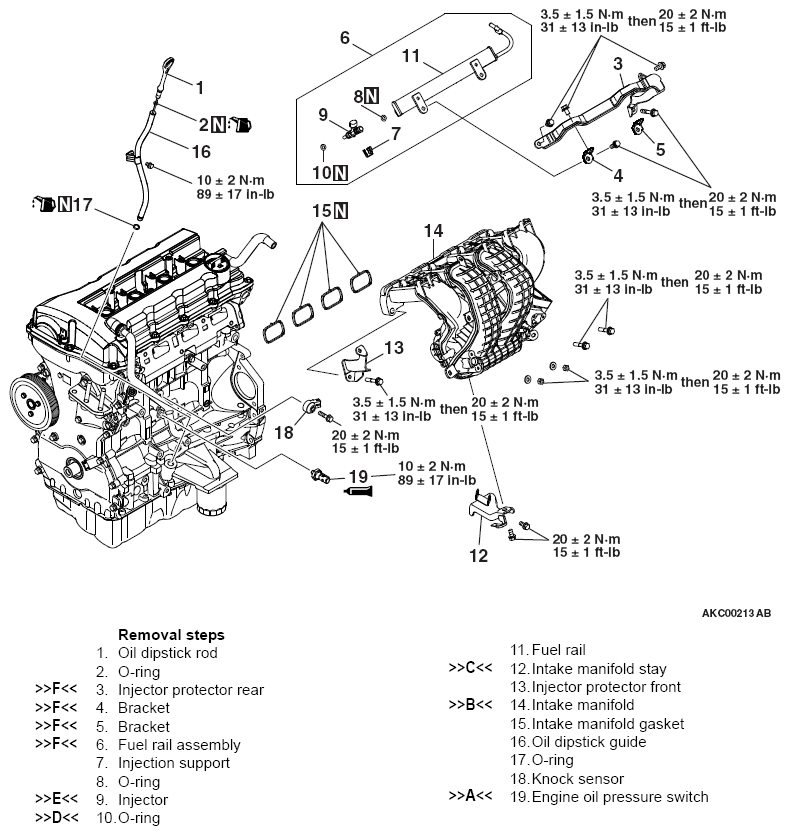

Fig 1: Exploded View Of Intake Manifold And Fuel System With Torque Specification
G12664606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
