Removal And Installation: Notes

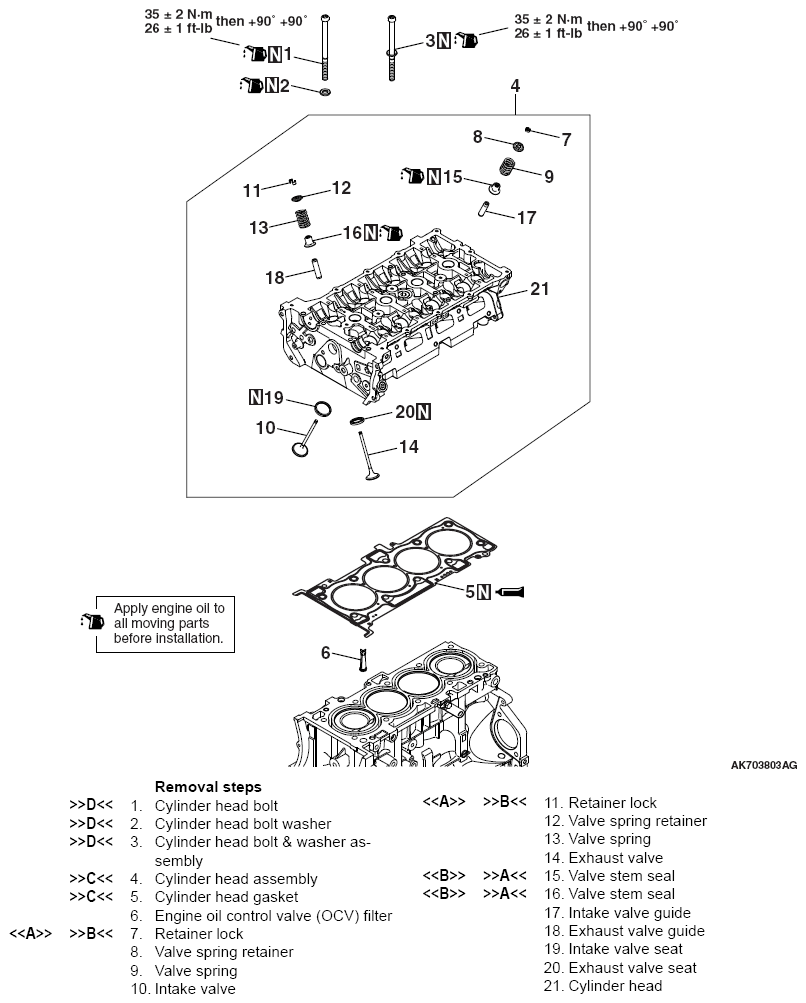

Fig 1: Cylinder Head And Valves Components With Torque Specification
G12664672Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
