Notes
Disassembly And Assembly: Notes

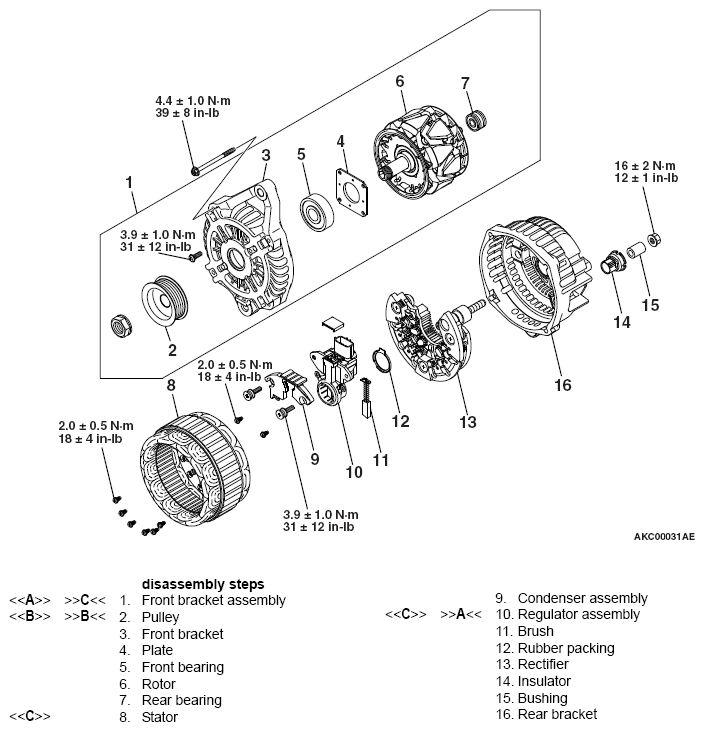

Fig 1: Exploded View Of Generator Assembly With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
