Mitsubishi
>>
2019
>>
RVR ES, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>

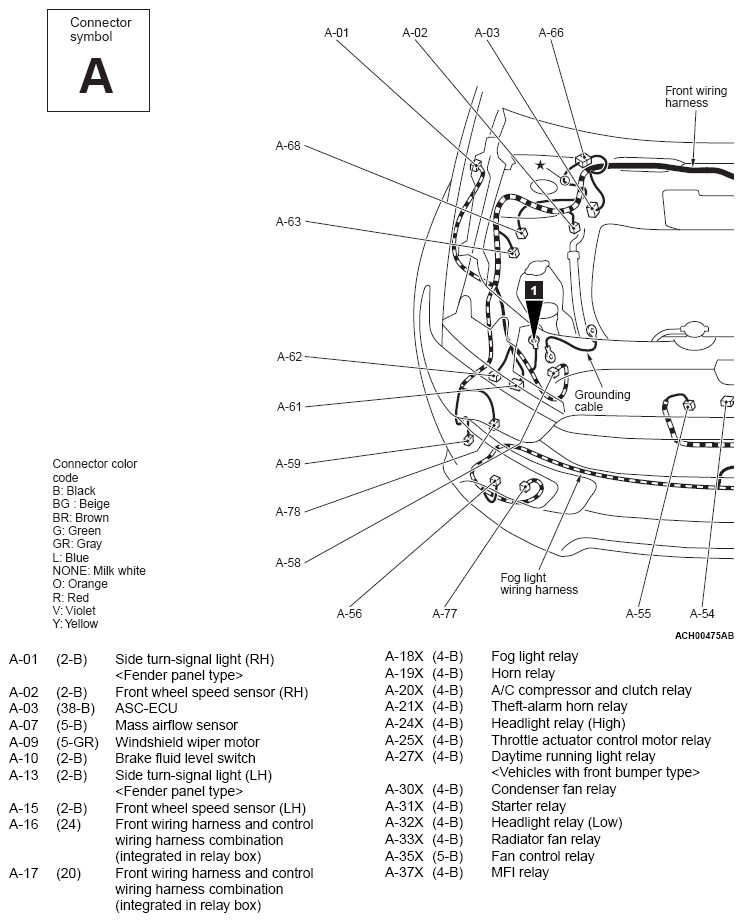

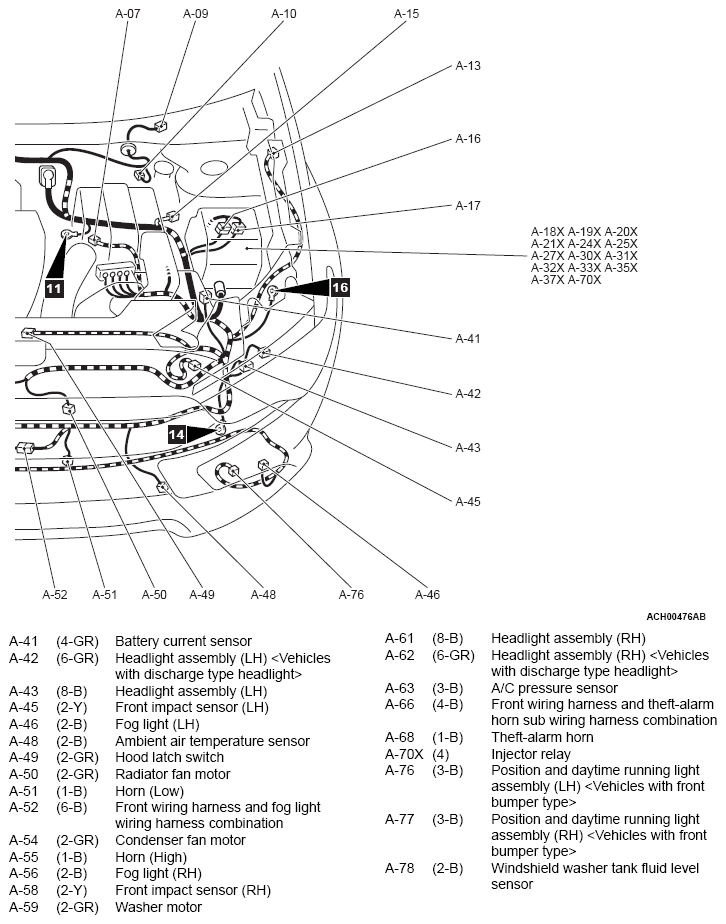

Engine Compartment
Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
