Steering Wheel Audio Remote Control Switch Check: Notes
WARNING: This page is about a different car, the 2019 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

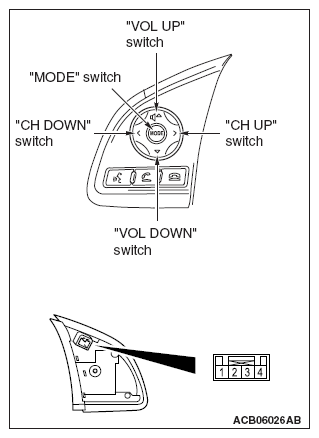

| Switch Position |
Tester Connection |
Measurement Value |
| "MODE" switch pushed |
1 - 2 |
Approximately 270 Ω |
| "CH UP" switch pushed |
Approximately 740 Ω |
| "CH DOWN" switch pushed |
Approximately 1.3 kΩ |
| "VOL UP" switch pushed |
Approximately 2.1 kΩ |
| "VOL DOWN" switch pushed |
Approximately 3.1 kΩ |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
