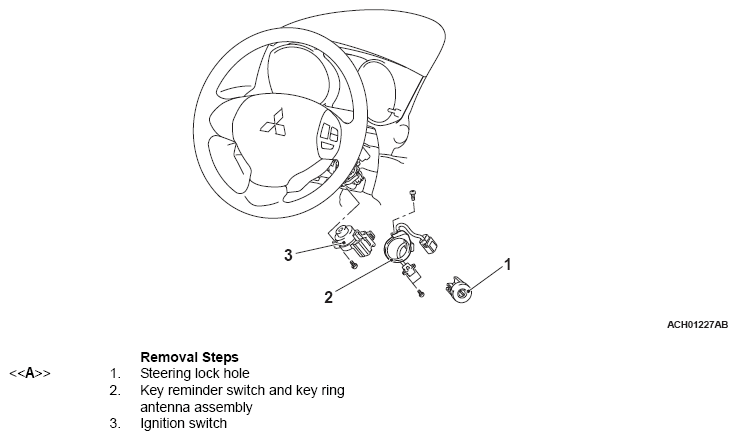

Removal And Installation: Notes
Pre-removal and Post-installation Operation
- Instrument Panel Cover Lower assembly Removal and Installation (Refer to INSTRUMENT LOWER PANEL ).
- Steering Column Lower Cover and Steering Column Upper Cover Removal and Installation (Refer to STEERING SHAFT ).
- Wiper/washer Switch Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
NOTE:
Other than the single unit supplying of key reminder switch and key ring antenna assembly as well as of ignition switch, they are also supplied as the mechanical steering lock assembly (mechanical steering lock, steering lock bracket, steering lock bolt, key reminder switch and key ring antenna assembly, and ignition switch are supplied as a set). For how to remove the mechanical steering lock, steering lock bracket, and steering lock bolt, refer to DISASSEMBLY AND REASSEMBLY OF STEERING SHAFT
.
