Removal And Installation: Notes

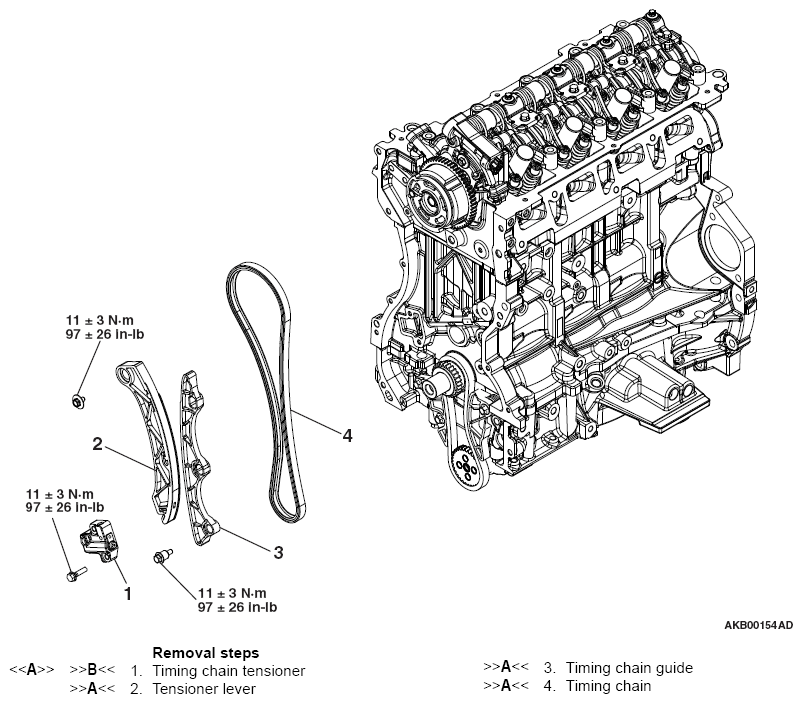

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification
G13083794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
