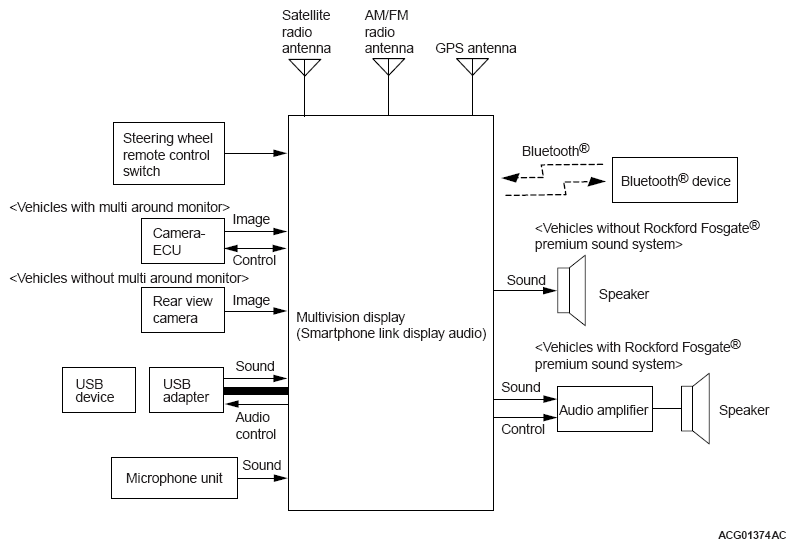

System Block Diagram

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
G12128136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
